Large Bailey Bridges

High Quality Bailey Bridge Used for Construction Promotional Bailey Bridge Used for Construction

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button
  • CB200

  • ZHONGHAI

  • ZHQL-CB200

Pedestrian Bridges: Vital Links for Safety, Connectivity, and Community

Pedestrian bridges, often called footbridges, are essential urban and rural infrastructure that prioritizes human movement, offering safe, dedicated paths across busy roads, rivers, railways, or uneven terrain. Unlike vehicle bridges, their design centers on accessibility, comfort, and integration with surrounding environments, making them far more than just functional crossings—they serve as community connectors, environmental harmonizers, and even cultural landmarks.

Safety stands as the primary purpose of pedestrian bridges. In bustling cities, where traffic congestion poses constant risks to walkers, these bridges eliminate the need for pedestrians to navigate busy intersections or jaywalk, drastically reducing accident rates. For example, a footbridge spanning a highway keeps commuters, schoolchildren, and seniors safe from speeding cars, turning a hazardous journey into a secure one. In rural areas, they provide reliable passage over flooded streams or deep gorges, ensuring year-round access to schools, markets, and healthcare facilities that might otherwise be cut off.

Beyond safety, pedestrian bridges enhance connectivity and quality of life. Many are designed with accessibility in mind, featuring ramps, wide walkways, and handrails to accommodate strollers, wheelchairs, and those with mobility challenges. Some even include benches, lighting, or greenery, transforming them into small public spaces where people can pause, relax, or socialize. In scenic locations, footbridges offer unique vantage points—think of a wooden bridge winding through a forest or a sleek, modern structure crossing a waterfront—attracting visitors and boosting local tourism.

Culturally, pedestrian bridges often hold symbolic value. They can reflect a region’s heritage: a historic stone footbridge in a European village tells stories of centuries of use, while a contemporary, artfully designed bridge in a city becomes a symbol of innovation. In communities divided by physical barriers like rivers or railways, these bridges act as unifiers, bringing neighborhoods closer together and fostering a sense of belonging.

In an era focused on sustainable urban planning and active transportation, pedestrian bridges play a key role in encouraging walking and reducing reliance on cars. By making walking safer and more enjoyable, they contribute to healthier communities and greener cities. As simple as they may seem, pedestrian bridges are powerful tools that blend functionality with heart, enriching the places they serve.

Basic Info.

Model NO.
CB321
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Across Way
Diffuse Water Bridge
Lane Position
Half Through Bridge
Usage
Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Scale
Middle Bridge
Stress Characteristics
Beam Bridge
Material
Steel Bridge
Product Capability60000 Pieces Per Year
60000 Pieces Per Year
Standard
ASTM,GB,BS,BV
Qualification
ISO or Similar
Grade
Q355b
Transport Package
Naked
Specification
45m
Trademark
Zhonghai
Origin
China
HS Code
730810000
Production Capacity
50000 Pieces/Year

Product Description

long truss bridge/square truss bridge
CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2

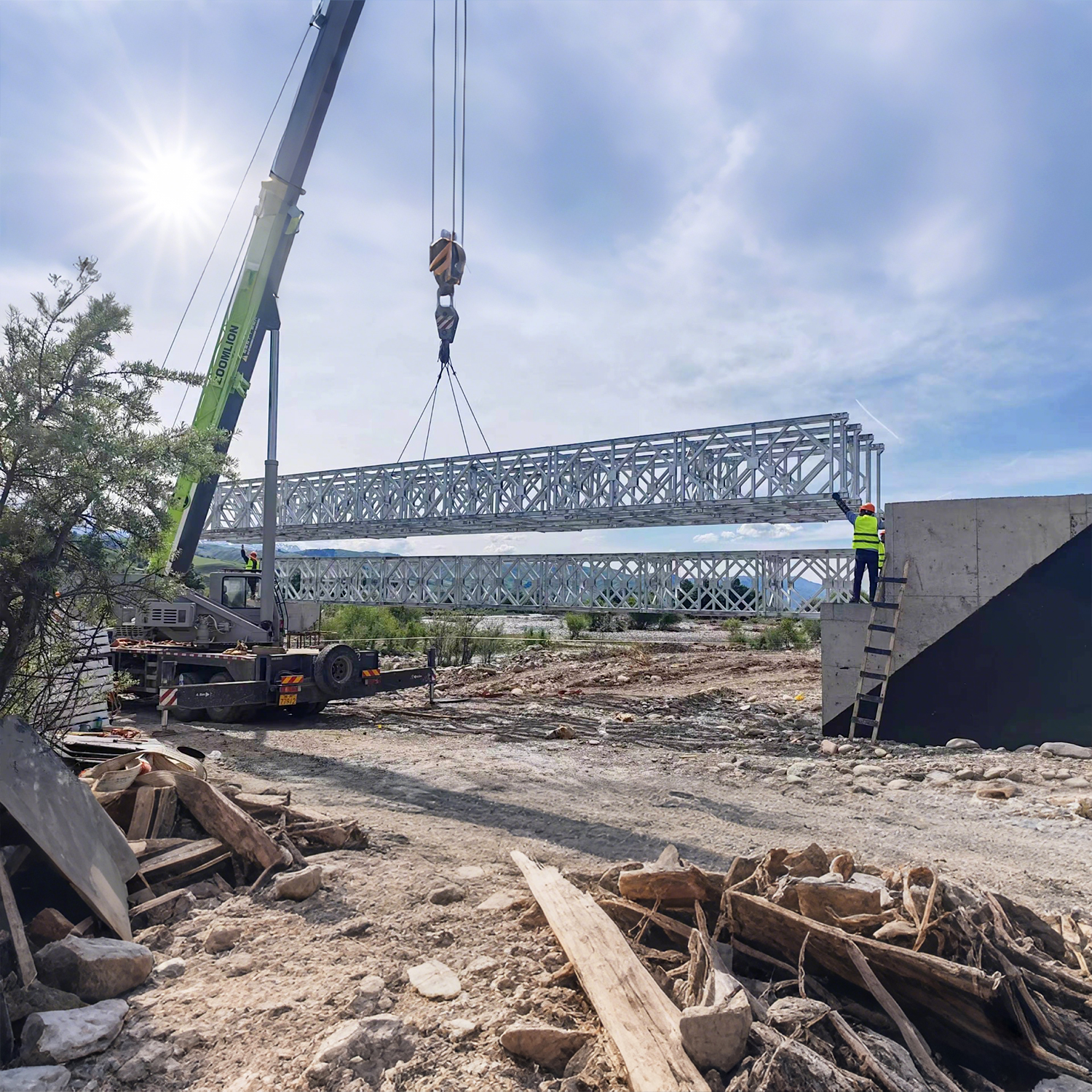

Project cases
Durable Long Truss Bridge for Heavy Load Applications


Company  instruction
Durable Long Truss Bridge for Heavy Load Applications
Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard:
GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )

Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size



Workshop
Durable Long Truss Bridge for Heavy Load Applications


Welding Machine
Durable Long Truss Bridge for Heavy Load Applications


Certificates
Durable Long Truss Bridge for Heavy Load Applications
Durable Long Truss Bridge for Heavy Load Applications

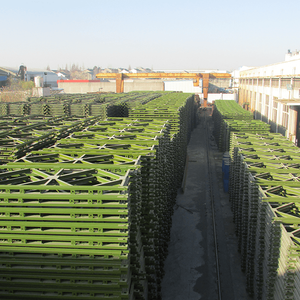

Warehousing and shipping
Durable Long Truss Bridge for Heavy Load Applications


Packing and Transporting
Durable Long Truss Bridge for Heavy Load Applications Durable Long Truss Bridge for Heavy Load Applications


FAQ

01.Which countries do you export to?

     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?

We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?

  Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?

The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?

Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
