ZB321

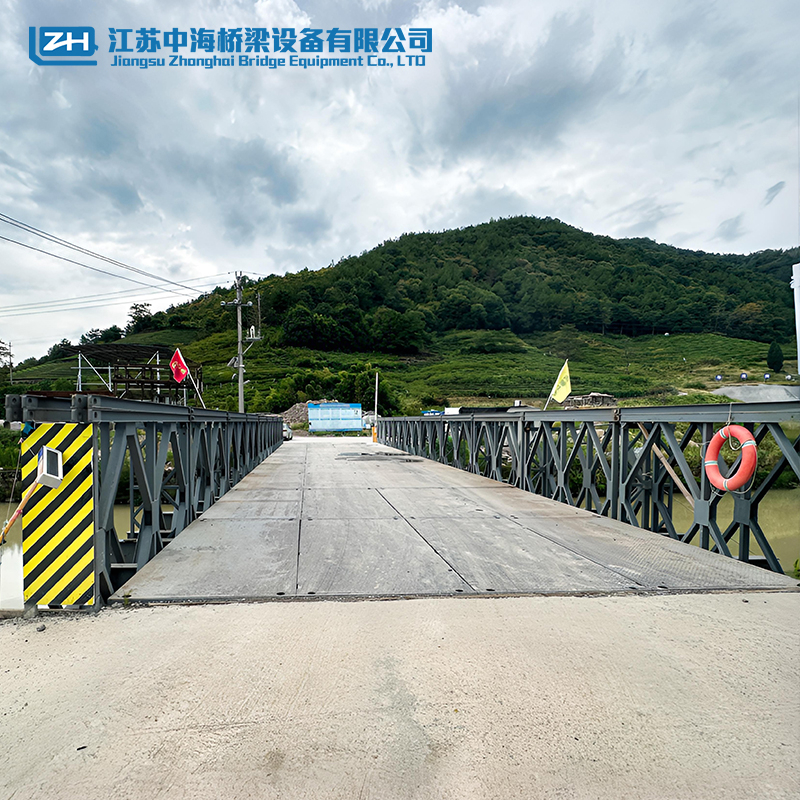

Introducing our top-of-the-line product: the Temporary Bailey Steel Bridge Steel Structure Bridge. This versatile bridge is designed to meet all your needs, whether you require an over water bridge, a tractor bridge, a pontoon, a footbridge, a public iron dual-purpose bridge, or a highway bridge.
Crafted with utmost precision and expertise, our Temporary Bailey Steel Bridge Steel Structure Bridge guarantees exceptional durability and reliability. Its robust steel structure ensures maximum strength, allowing it to withstand heavy loads and harsh environmental conditions.
Designed for easy installation and quick assembly, this bridge offers unparalleled convenience. Its modular design enables swift deployment, making it an ideal choice for emergency situations or temporary infrastructure requirements.
Safety is paramount, and our Temporary Bailey Steel Bridge Steel Structure Bridge excels in this aspect. With its sturdy construction and adherence to strict quality standards, this bridge provides a secure passage for pedestrians, vehicles, and heavy machinery alike.
Not only does our bridge offer exceptional functionality, but it also boasts an aesthetically pleasing design. Its sleek and professional appearance seamlessly blends into any environment, enhancing the overall visual appeal.
When it comes to quality, reliability, and versatility, our Temporary Bailey Steel Bridge Steel Structure Bridge stands head and shoulders above the rest. Trust in our product to deliver outstanding performance, ensuring a smooth and efficient transportation experience.
Invest in the best. Choose our Temporary Bailey Steel Bridge Steel Structure Bridge for all your over water, tractor, pontoon, footbridge, public iron dual-purpose, and highway bridge needs. Experience the pinnacle of engineering excellence and witness the difference it makes in your projects.
ZB200 Truss Press Limited Table | |||||||||
NO. | Internal Force | Structure Form | |||||||
Not Reinforced Model | Reinforced Model | ||||||||
SS | DS | TS | QS | SSR | DSR | TSR | QSR | ||
200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
ZB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge) | ||||
Structure | Geometric Characteristics | |||
Geometric Characteristics | Chord Area(cm2) | Section Properties(cm3) | Moment of Inertia(cm4) | |
ss | SS | 25.48 | 5437 | 580174 |
SSR | 50.96 | 10875 | 1160348 | |
DS | DS | 50.96 | 10875 | 1160348 |
DSR1 | 76.44 | 16312 | 1740522 | |
DSR2 | 101.92 | 21750 | 2320696 | |
TS | TS | 76.44 | 16312 | 1740522 |
TSR2 | 127.4 | 27185 | 2900870 | |
TSR3 | 152.88 | 32625 | 3481044 | |
QS | QS | 101.92 | 21750 | 2320696 |
QSR3 | 178.36 | 38059 | 4061218 | |
QSR4 | 203.84 | 43500 | 4641392 |
