Introducing our high-quality bridge transportation solution, specifically designed for military applications. With a professional tone, we proudly present a product that meets the needs of the armed forces.
Our bridge transportation system offers unparalleled durability and reliability, ensuring seamless operations in critical situations. Manufactured with utmost precision and attention to detail, this product guarantees exceptional performance and longevity.
As a direct manufacturer, we are pleased to offer this top-notch solution at a competitive price. By eliminating intermediaries, we pass on the cost savings directly to our valued customers. Rest assured, you are getting the best value for your investment without compromising on quality.
Experience the convenience and efficiency of our bridge transportation system, tailored to meet the rigorous demands of military operations. Trust in our commitment to excellence and choose a product that will exceed your expectations.
Order now and equip your military forces with a bridge transportation solution that combines superior quality, affordability, and direct manufacturer benefits.
Basic Info.
Life
Semi-Permanent Bridge
Across Way
Diffuse Water Bridge
Lane Position
Half Through Bridge
Usage
Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Stress Characteristics
Beam Bridge
Product Capability
60000 Pieces Per Year
Packing
Packing in Containers or Bulk
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
310.00cm * 200.00cm * 180.00cm
Package Gross Weight
3100.000kg
Product Description
steel truss arch bridge/temporary steel bridge | CB200 Truss Press Limited Table |
| NO. | Internal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | QS | SSR | DSR | TSR | QSR |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
| CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge) |
| Structure | Geometric Characteristics |
| Geometric Characteristics | Chord Area(cm2) | Section Properties(cm3) | Moment of Inertia(cm4) |
| ss | SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | DS | 50.96 | 10875 | 1160348 |
| DSR1 | 76.44 | 16312 | 1740522 |
| DSR2 | 101.92 | 21750 | 2320696 |
| TS | TS | 76.44 | 16312 | 1740522 |
| TSR2 | 127.4 | 27185 | 2900870 |
| TSR3 | 152.88 | 32625 | 3481044 |
| QS | QS | 101.92 | 21750 | 2320696 |
| QSR3 | 178.36 | 38059 | 4061218 |
| QSR4 | 203.84 | 43500 | 4641392 |

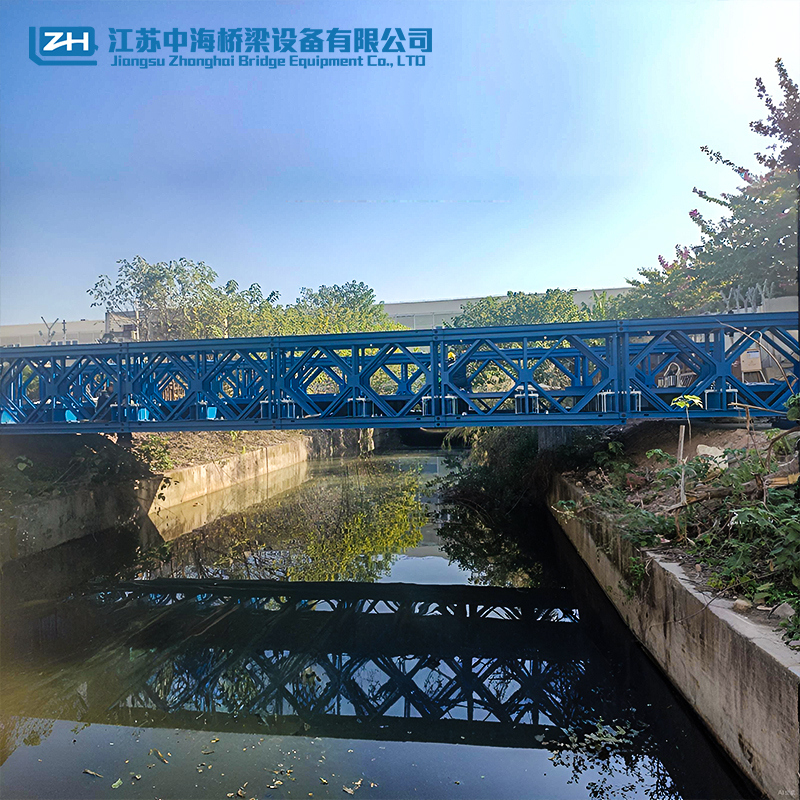

Project cases
Company instruction Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade: Q355B/Q460C or Equivalent
Application: temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size
Workshop

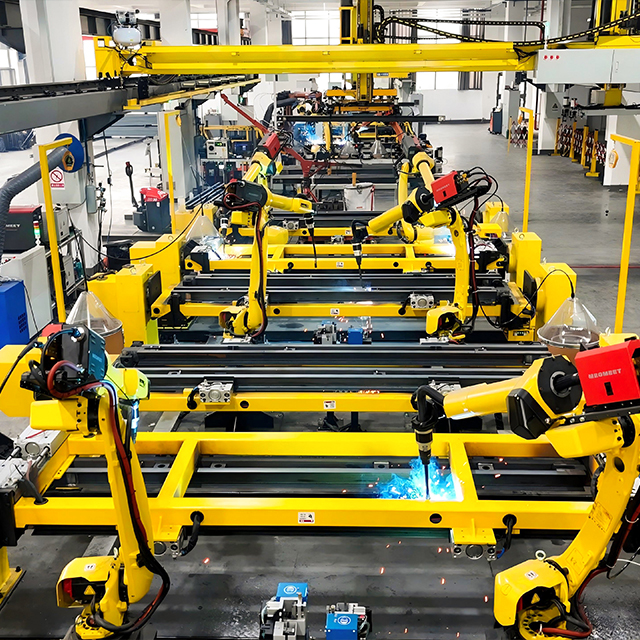

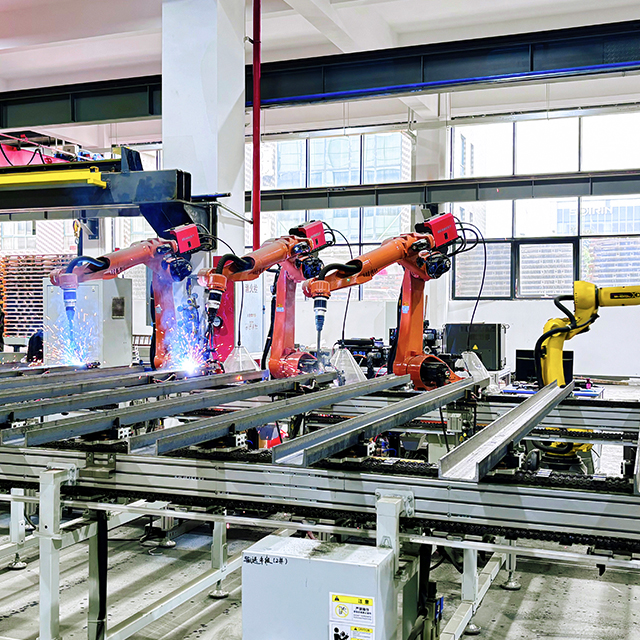

Welding Machine
Certificates
Warehousing and shipping
Packing and Transporting
FAQ
01.Which countries do you export to? Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc. 02.Are you a factory or a trade company ?
We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience. 03.Do you accept custom processing?
Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure. 04.Can your company meet American standards? Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards. 05.Which airport is the nearest to your company?
Can l visit your company anytime?
The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company. 06.Could you send me some hard copies of your catalogues? Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible. 07.Can we be your agent or distributor?
Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you! 08.How soon can l receive your reply after l send you my inquiry? We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
