Customizable Galvanized Steel Bridges for Safe Transportation Needs

In the realm of transportation infrastructure, safety and adaptability are paramount—especially when addressing diverse scenarios like rural highways, industrial logistics hubs, or emergency disaster - response routes. Customizable galvanized steel bridges emerge as a game - changer, blending the inherent durability of galvanized steel with flexible design, perfectly catering to safe transportation needs across various contexts.

The customization of these bridges starts with structural flexibility. Engineers can tailor key parameters such as span length (from short rural crossings to long river - spanning structures), load capacity (adjusted for passenger cars, heavy trucks, or even emergency vehicles), and deck width (to fit single - lane rural roads or multi - lane urban corridors). For instance, in mountainous areas with narrow valleys, a compact, short - span galvanized steel bridge can be designed to navigate tight spaces while ensuring safe passage for local traffic. In industrial zones, wider decks with reinforced load - bearing systems can be customized to handle frequent shipments of heavy machinery, preventing structural strain and ensuring long - term safety.

Galvanized steel’s corrosion resistance further enhances transportation safety. The zinc coating shields the steel from rust caused by rain, snow, or industrial chemicals, maintaining structural integrity even in harsh environments. This durability means the bridges require minimal maintenance, reducing the risk of sudden structural issues that could disrupt safe transportation. Unlike wooden or concrete bridges— which may crack, rot, or degrade over time—customized galvanized steel bridges retain their strength, providing a reliable path for daily commutes, freight transport, or emergency rescues.

Additionally, customization extends to safety - focused add - ons. Bridges can be equipped with anti - slip decks to prevent vehicle skidding in wet weather, high - visibility guardrails to guide drivers, and even integrated drainage systems to avoid water accumulation. For areas prone to extreme weather, such as hurricane - prone coastal regions, wind - resistant designs can be incorporated to ensure the bridge remains stable during storms, safeguarding both vehicles and passengers.

In conclusion, customizable galvanized steel bridges merge adaptability with uncompromised safety. By meeting the unique demands of different transportation scenarios—while leveraging galvanized steel’s durability—they become an indispensable solution for building safe, reliable infrastructure that supports seamless and secure movement for all users.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

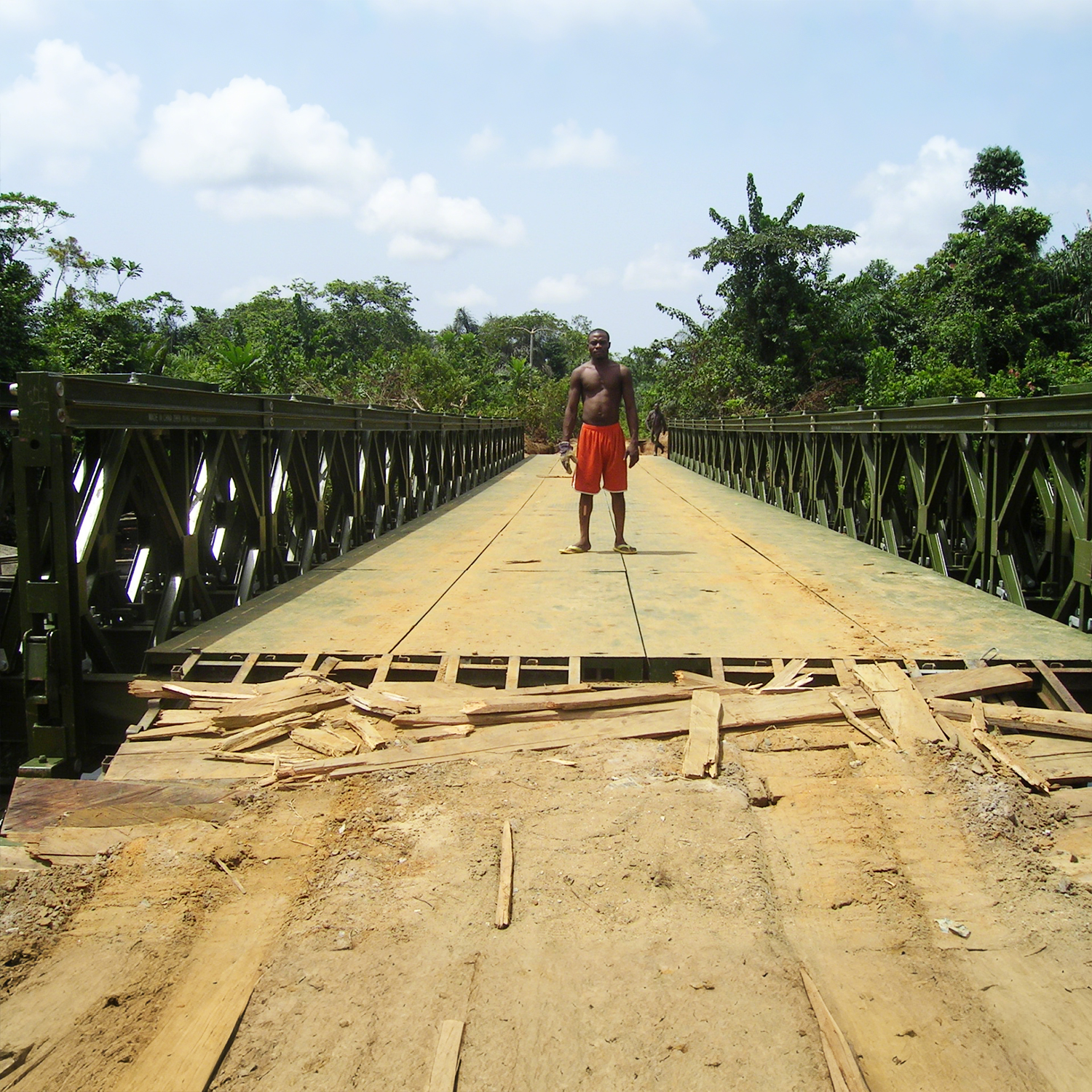

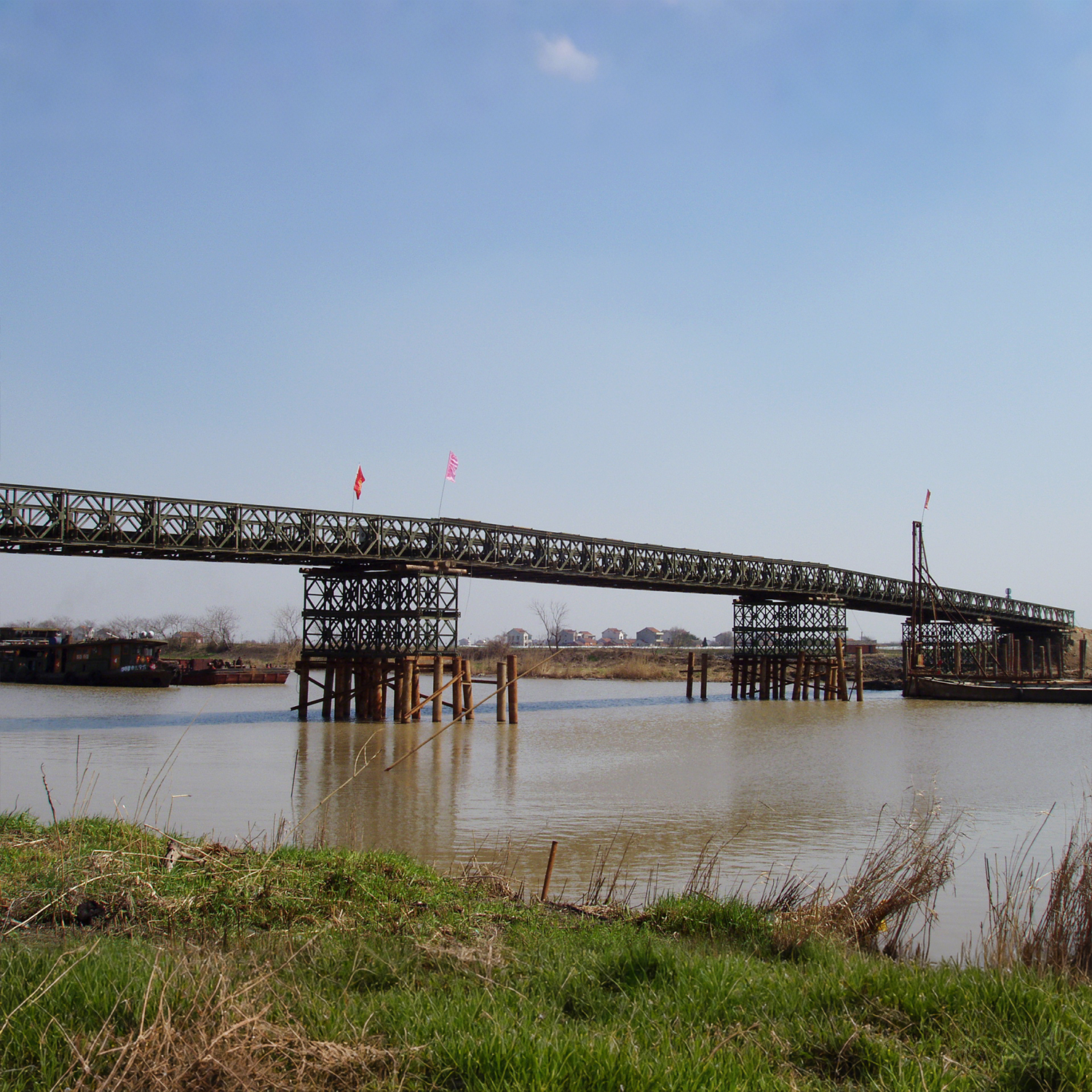

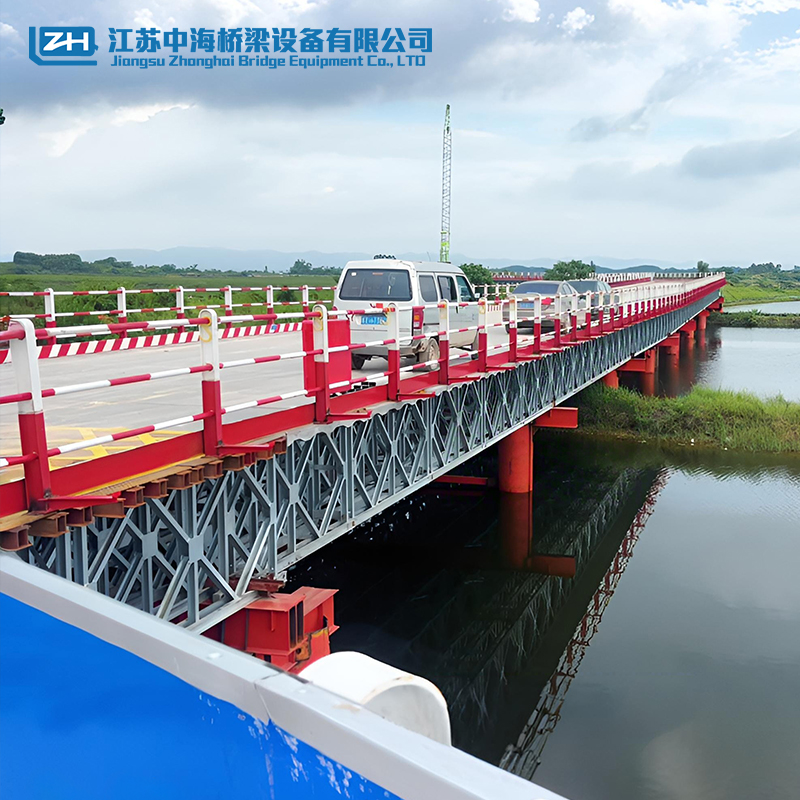

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
