Versatile Temporary Steel Framework for Reliable Support and Stability

In industries ranging from construction and events to disaster relief, the need for structures that offer both reliable support and adaptability is crucial—and versatile temporary steel frameworks stand out as a solution that delivers on both fronts. These frameworks leverage the inherent strength of steel while embracing flexible design, making them indispensable for diverse scenarios requiring stable, short - term structural support.

One of the key strengths of temporary steel frameworks is their ability to adapt to varied support needs across industries. On construction sites, they serve as robust scaffolding systems, providing stable platforms for workers to install walls, ceilings, and facades at height. Unlike traditional wooden scaffolding that struggles with heavy loads, steel frameworks easily bear the weight of tools, materials, and multiple workers, minimizing the risk of collapses. Beyond construction, they shine in event management: they form the core of temporary stages, exhibition booths, and lighting rigs. For a large - scale music festival, a steel framework can be customized to support massive sound speakers and LED screens, ensuring stable performance even with vibrations from loud music or strong winds.

Reliable stability is embedded in the design of these steel frameworks. Crafted from high - tensile steel, they resist bending, warping, or breaking under pressure. Many frameworks feature interlocking components that create a rigid, unified structure, eliminating weak points that could compromise stability. In disaster - hit areas, this stability is life - saving: temporary steel frameworks are used to build emergency shelters and medical tents that withstand storms or aftershocks, providing safe spaces for displaced people and healthcare workers.

Additionally, the versatility of these frameworks extends to their ease of customization and reuse. They come in modular components that can be quickly assembled, disassembled, and reconfigured for different projects. A steel framework used as a temporary warehouse for a construction project can later be adjusted into a covered walkway for a community event, reducing waste and lowering costs. This adaptability, paired with long - lasting steel durability, ensures the frameworks remain a cost - effective and reliable choice over time.

In conclusion, versatile temporary steel frameworks merge adaptability with unwavering support and stability. Their ability to meet diverse industry needs while maintaining structural integrity makes them a cornerstone for projects requiring flexible, dependable temporary structures.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

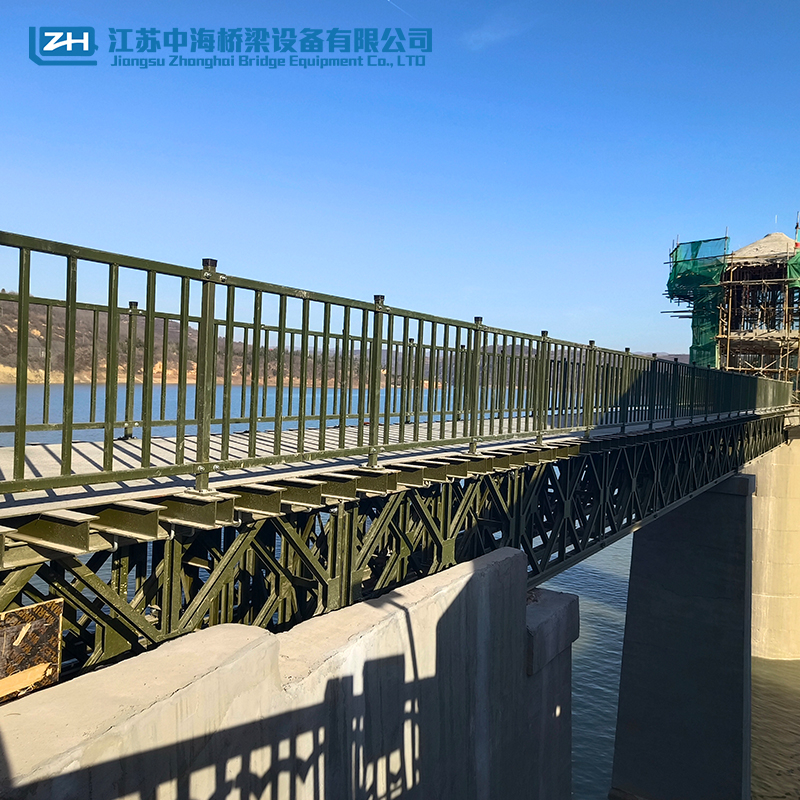

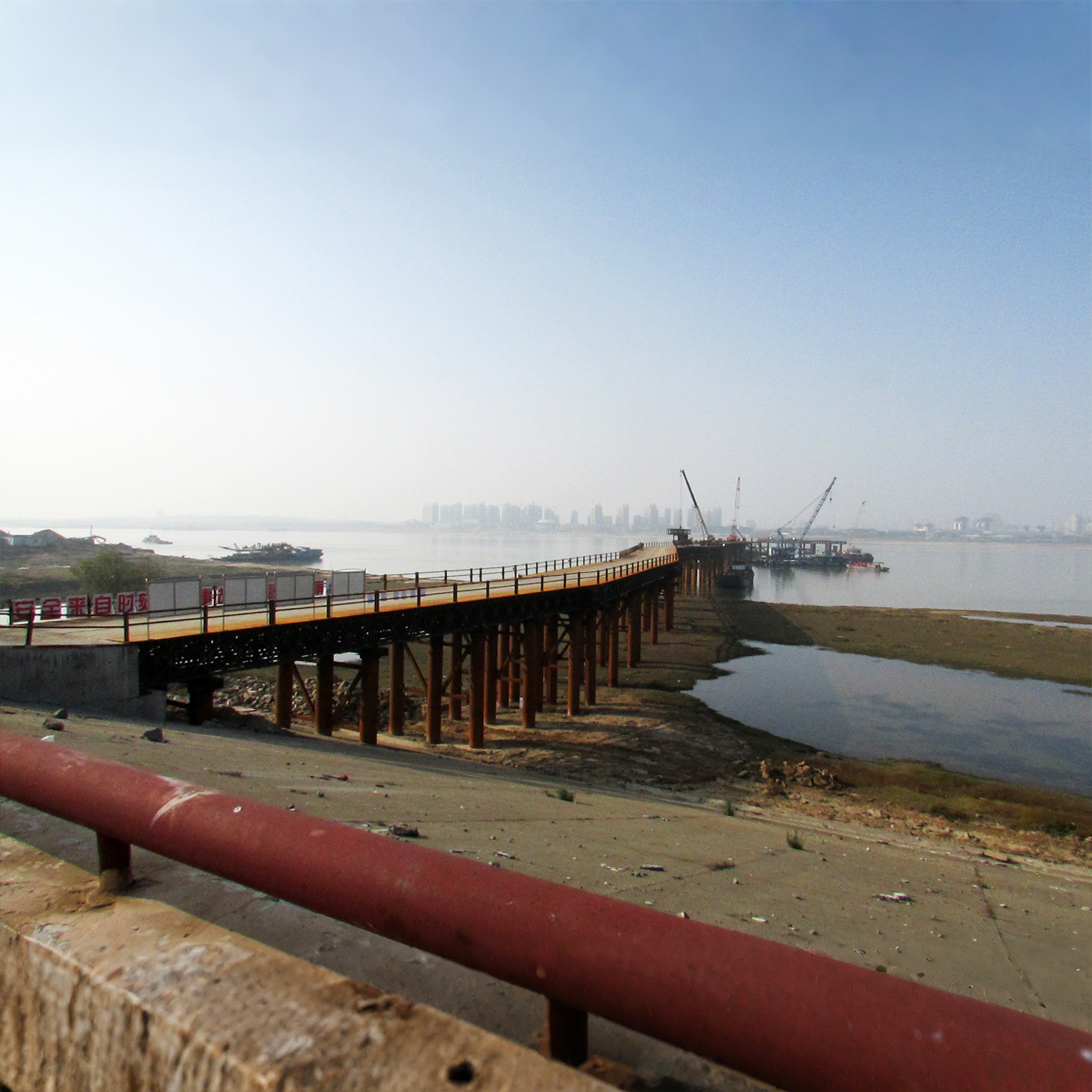

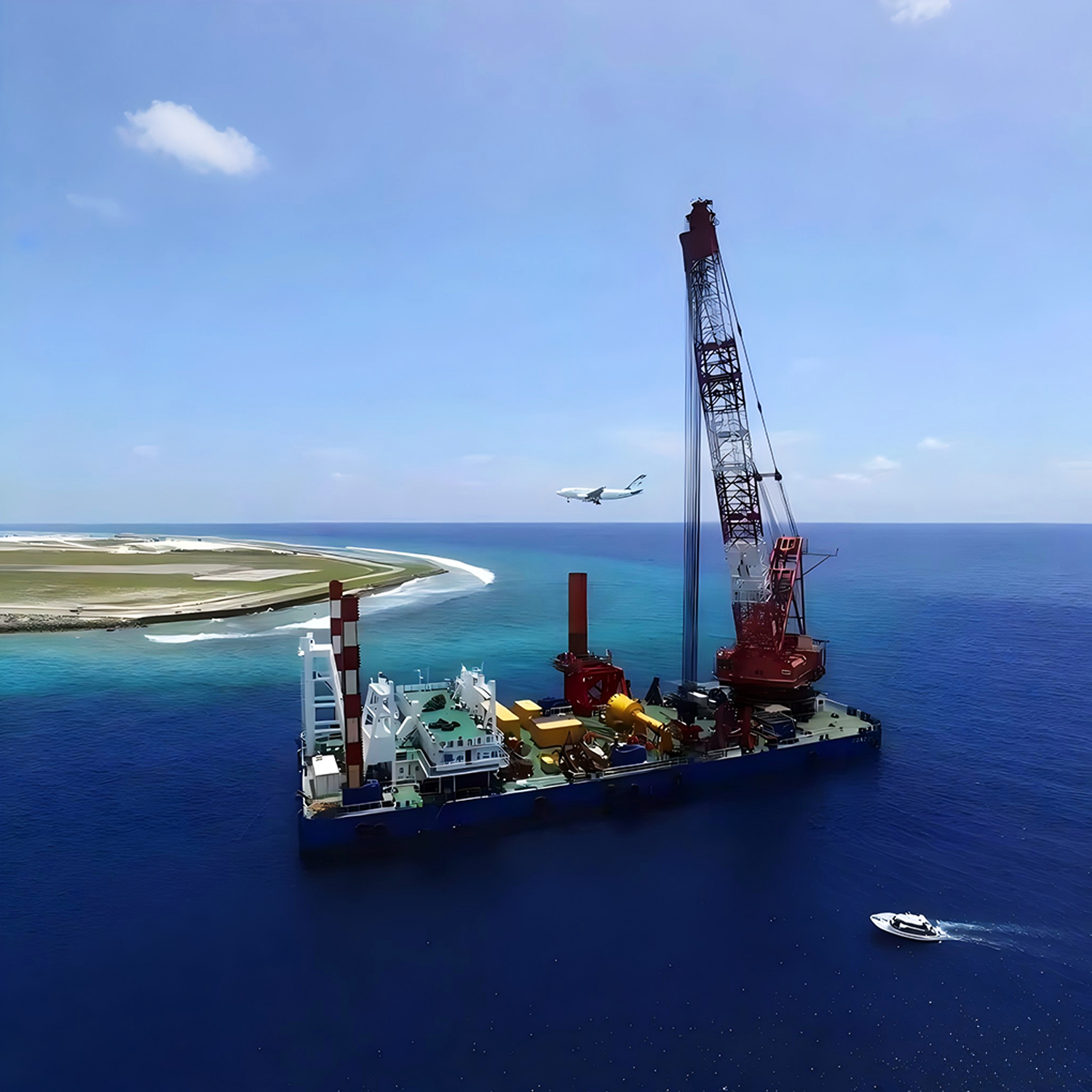

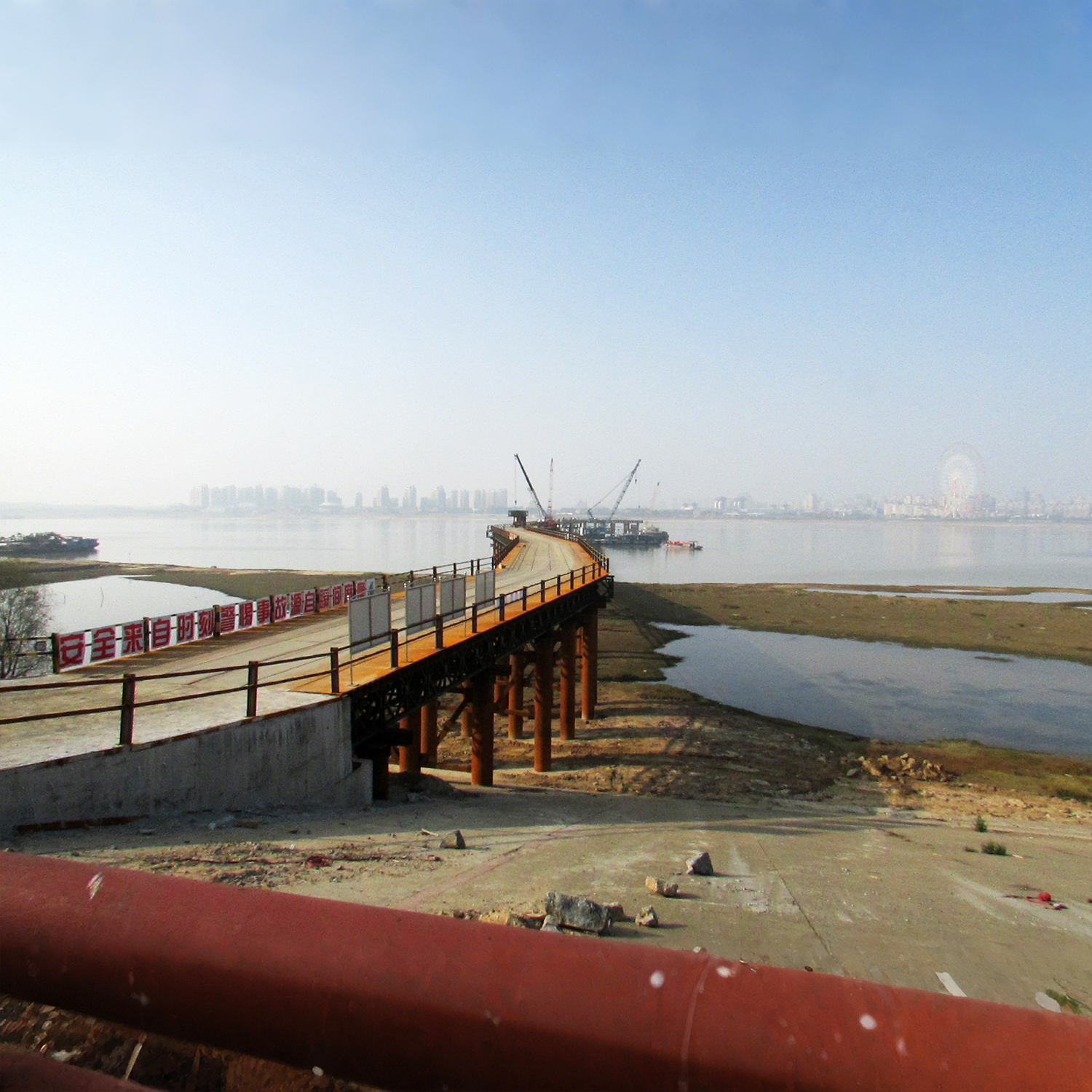

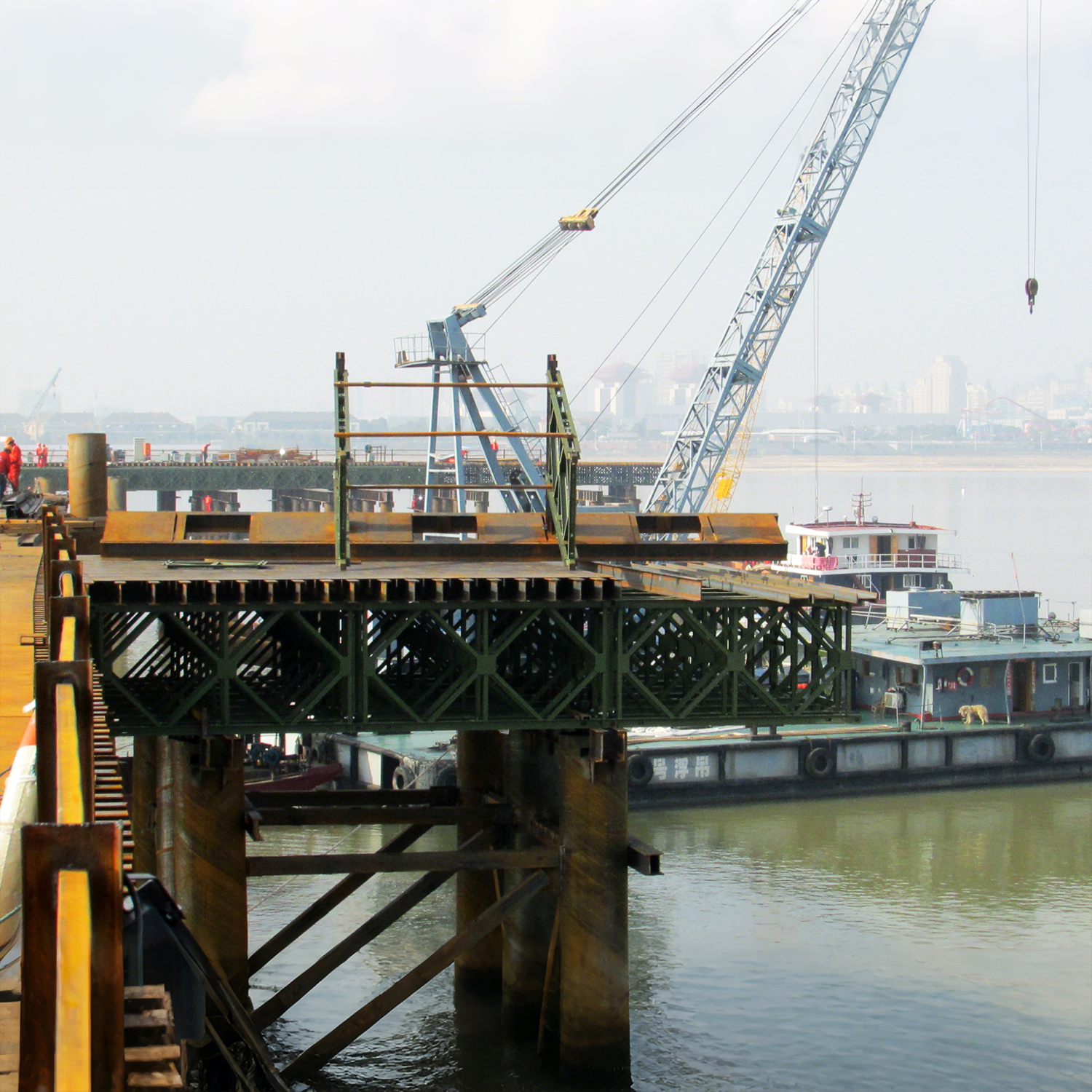

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
