Safety is the top priority on any building site, where heavy machinery, frequent worker movement, and changing construction conditions pose constant risks. High - quality temporary steel structures have become essential safeguards, providing reliable, secure solutions that address key safety challenges while supporting smooth construction operations.

One of the primary contributions of these steel structures to site safety is their exceptional structural stability. Made from high - grade steel with strict quality control, they boast superior load - bearing capacity and resistance to external pressures. For example, temporary steel access towers, used by workers to reach high construction areas, offer stable platforms that minimize the risk of collapses—unlike weaker alternatives that may wobble or fail under weight. Similarly, temporary steel barricades and fencing create clear, sturdy boundaries, separating construction zones from public areas or non - work zones, preventing unauthorized access and reducing the chance of accidents involving pedestrians or stray vehicles.

These structures also enhance safety by protecting workers and materials from harsh conditions. Temporary steel shelters and canopies shield construction teams from rain, intense sunlight, or strong winds, ensuring they can work in safer, more comfortable environments. They also provide secure storage for sensitive materials like electrical components or chemicals, keeping them away from moisture, dust, or potential damage—this not only preserves material quality but also avoids safety hazards such as chemical leaks or short circuits caused by exposed equipment.

Moreover, high - quality temporary steel structures are designed with safety - focused features and easy adaptability. Many come with anti - slip surfaces on walkways, reinforced handrails on platforms, and clear signage, further reducing accident risks. Their modular design allows for quick assembly and disassembly, ensuring they can be adjusted as the construction site evolves—for instance, expanding a temporary steel loading dock as material deliveries increase, without disrupting site safety protocols.

In conclusion, high - quality temporary steel structures are vital for creating safe building sites. Their stability, protective capabilities, and safety - oriented design make them indispensable tools, helping construction teams mitigate risks, protect workers, and maintain a secure environment throughout the project lifecycle.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

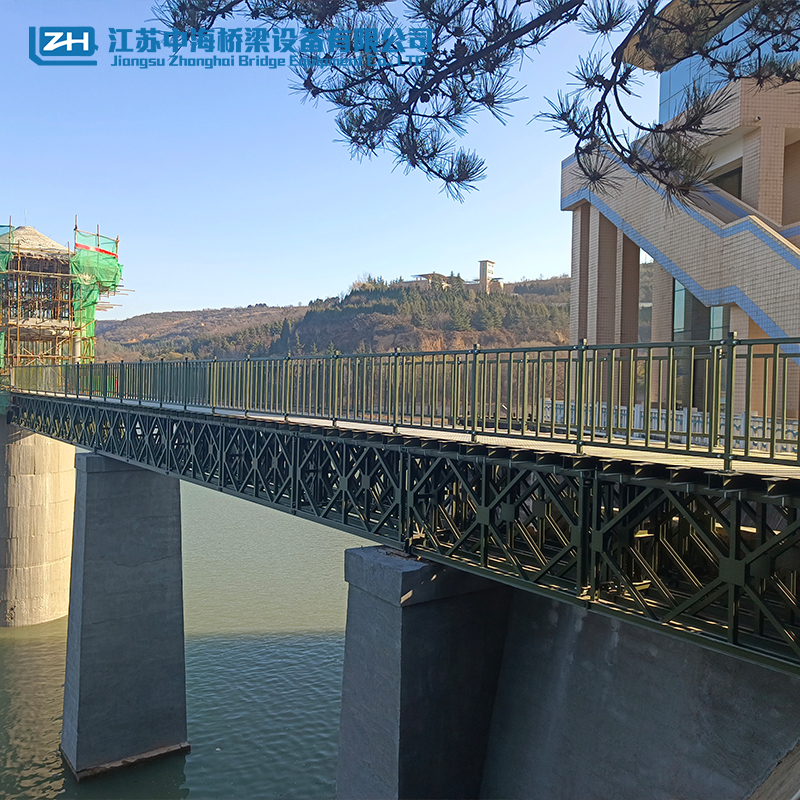

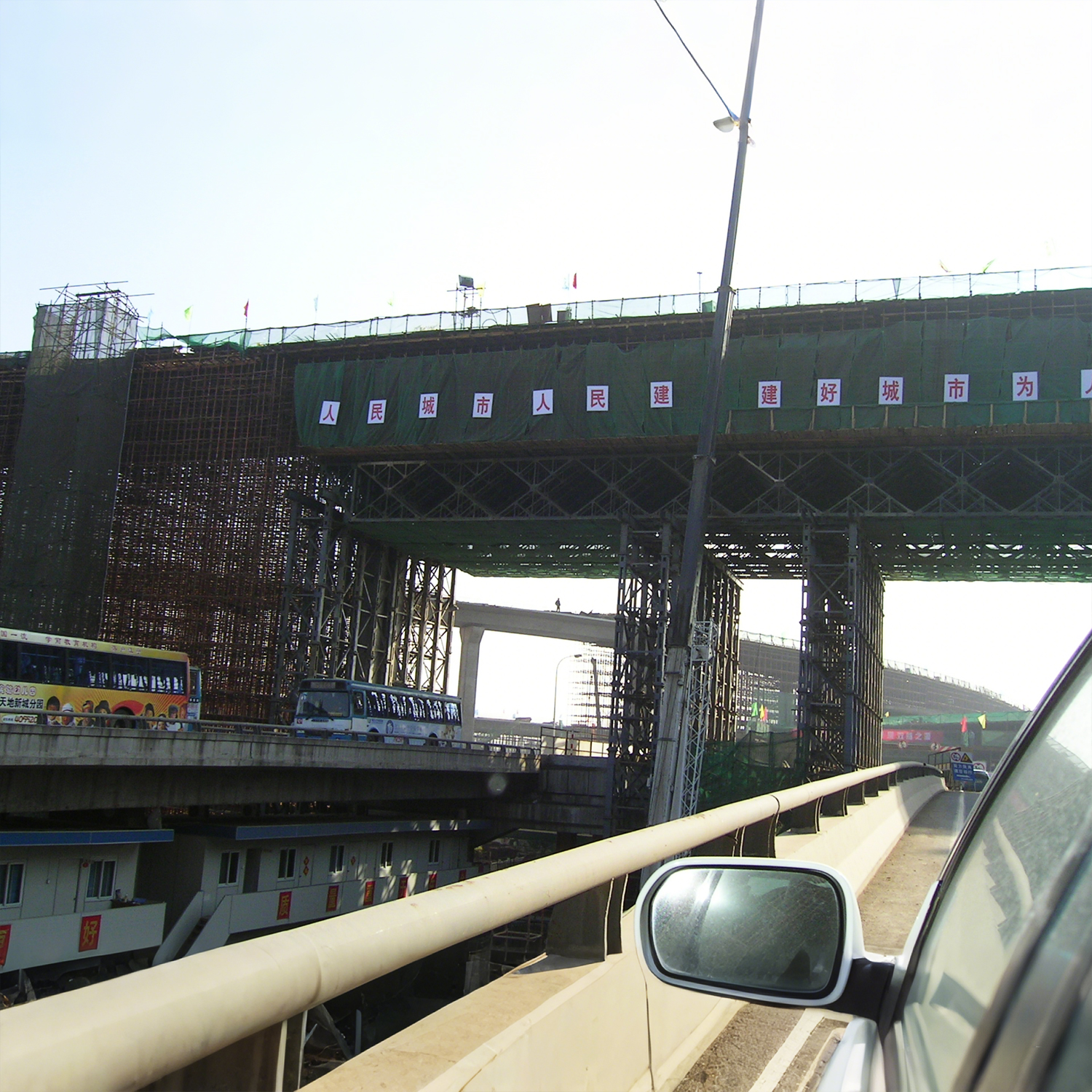

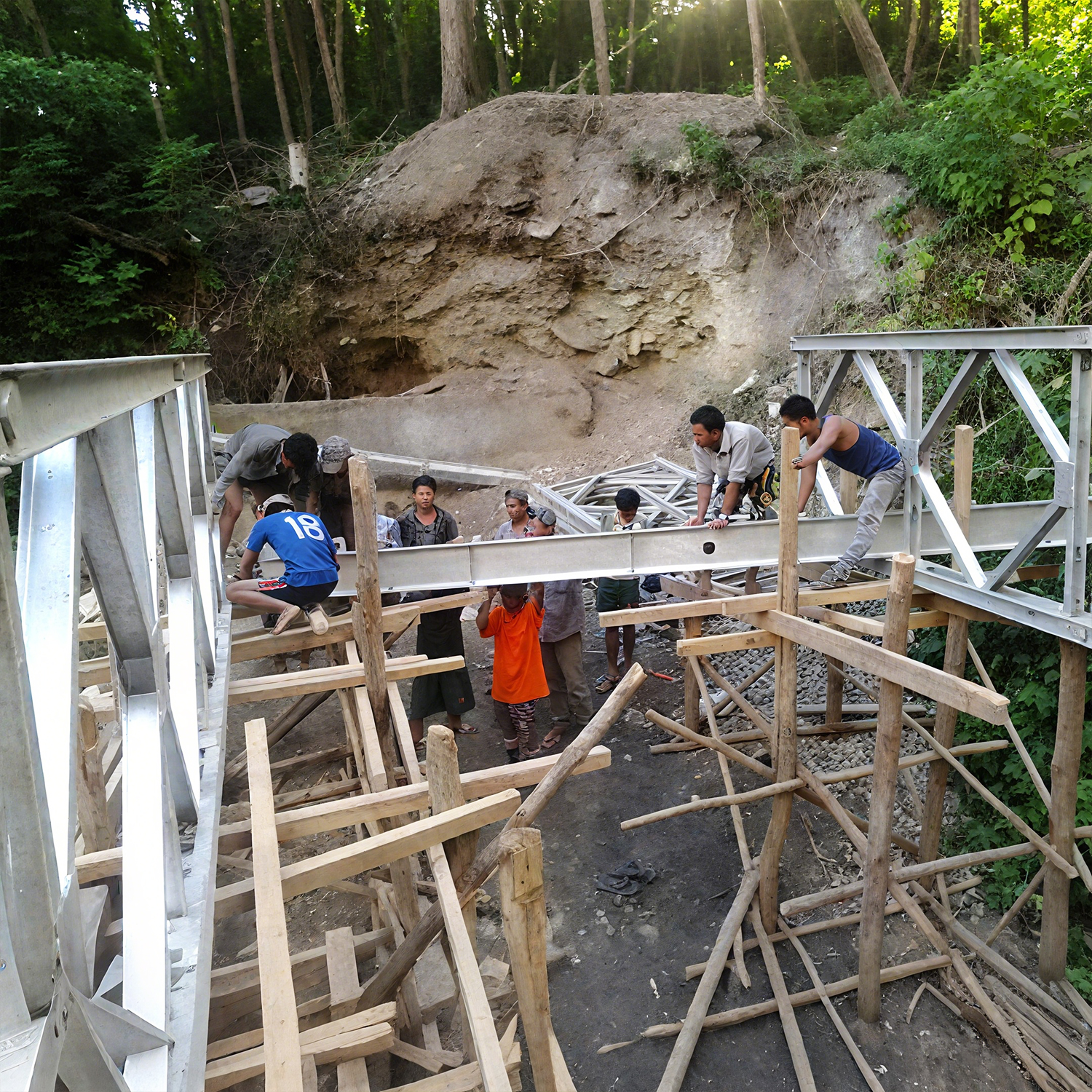

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size
