When projects—whether in construction, emergency relief, agriculture, or community development—require reliable crossing solutions that adapt to diverse needs, high-quality portable bridges for sale emerge as the perfect choice. These bridges blend top-tier craftsmanship with versatile design, ensuring they meet the unique demands of any project while delivering long-lasting performance.

The foundation of their appeal lies in exceptional quality. Crafted from premium materials like high-grade galvanized steel and reinforced composite alloys, these bridges undergo rigorous testing to withstand heavy loads, harsh weather, and frequent use. The galvanized steel coating, for instance, forms a robust barrier against rust and corrosion, even in humid rural areas or coastal regions prone to salt spray. This quality ensures the bridges remain structurally sound for decades, avoiding the frequent repairs or replacements that plague lower-quality alternatives. For a construction project in a rainy mountainous area, this durability means the bridge can safely support daily trips of heavy excavators and concrete trucks without compromising safety.

What makes these bridges perfect for any project is their unmatched versatility. They come in a wide range of configurations: span lengths from 4 meters (for small farm ditches) to 40 meters (for river crossings), load capacities from light passenger vehicles to heavy-duty industrial machinery, and deck widths tailored for pedestrian-only use or multi-vehicle traffic. A rural community, for example, might opt for a 10-meter, single-lane bridge to connect farmlands, while a disaster relief team could select a 20-meter, high-load bridge to restore access to a flood-hit town. This flexibility eliminates the need for custom-built structures, saving projects time and money.

Additionally, their user-friendly design enhances their suitability for all projects. Most high-quality portable bridges feature modular components that are easy to transport (fitting in standard trucks) and quick to assemble—often by a small team in just 1-2 days using basic tools. This is critical for time-sensitive projects, such as emergency relief efforts where rapid access to affected areas can save lives, or construction projects with tight deadlines.

In conclusion, high-quality portable bridges for sale combine durability, versatility, and ease of use, making them an ideal solution for any project. Whether it’s a small community initiative or a large-scale industrial endeavor, these bridges deliver reliable, adaptable crossing support that drives project success.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

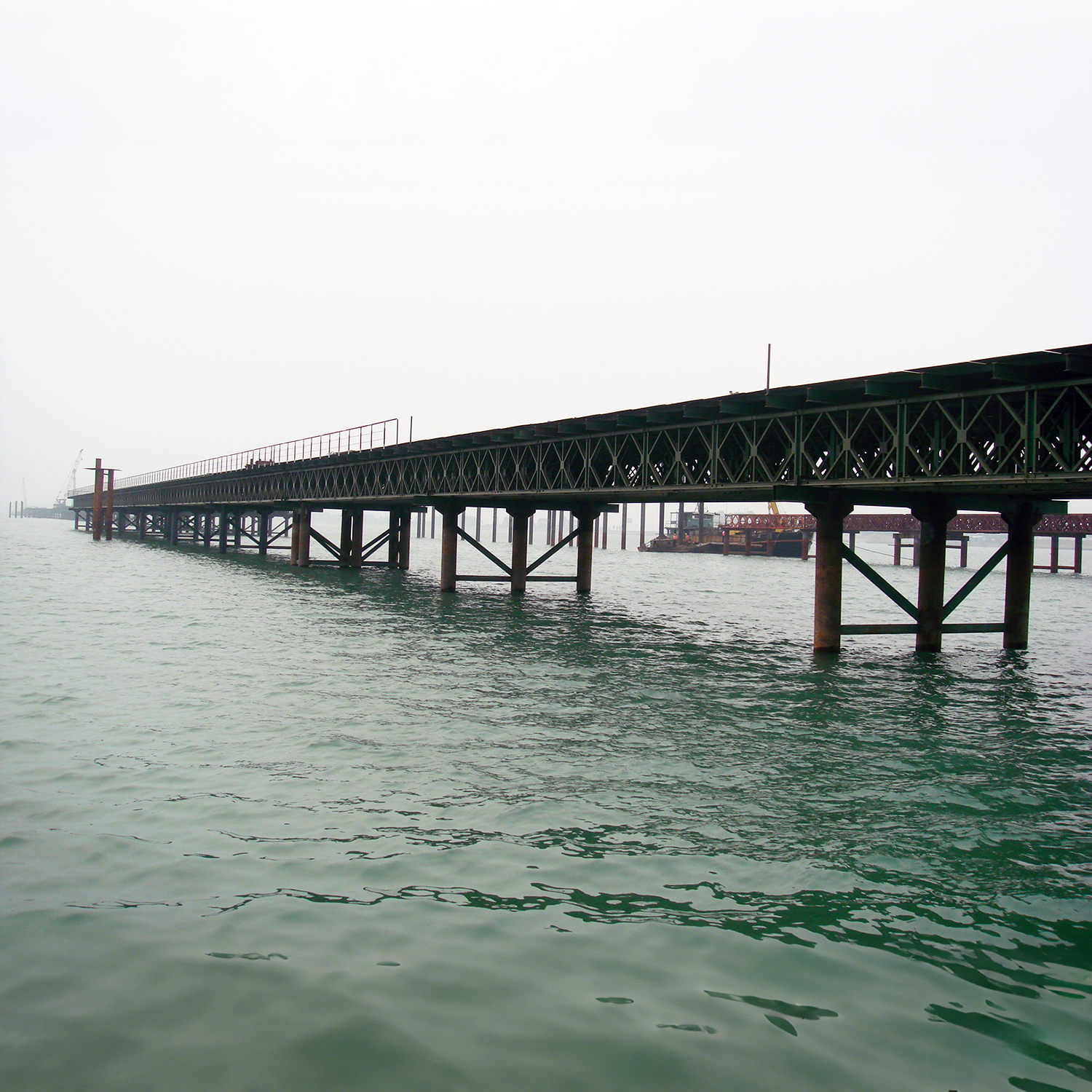

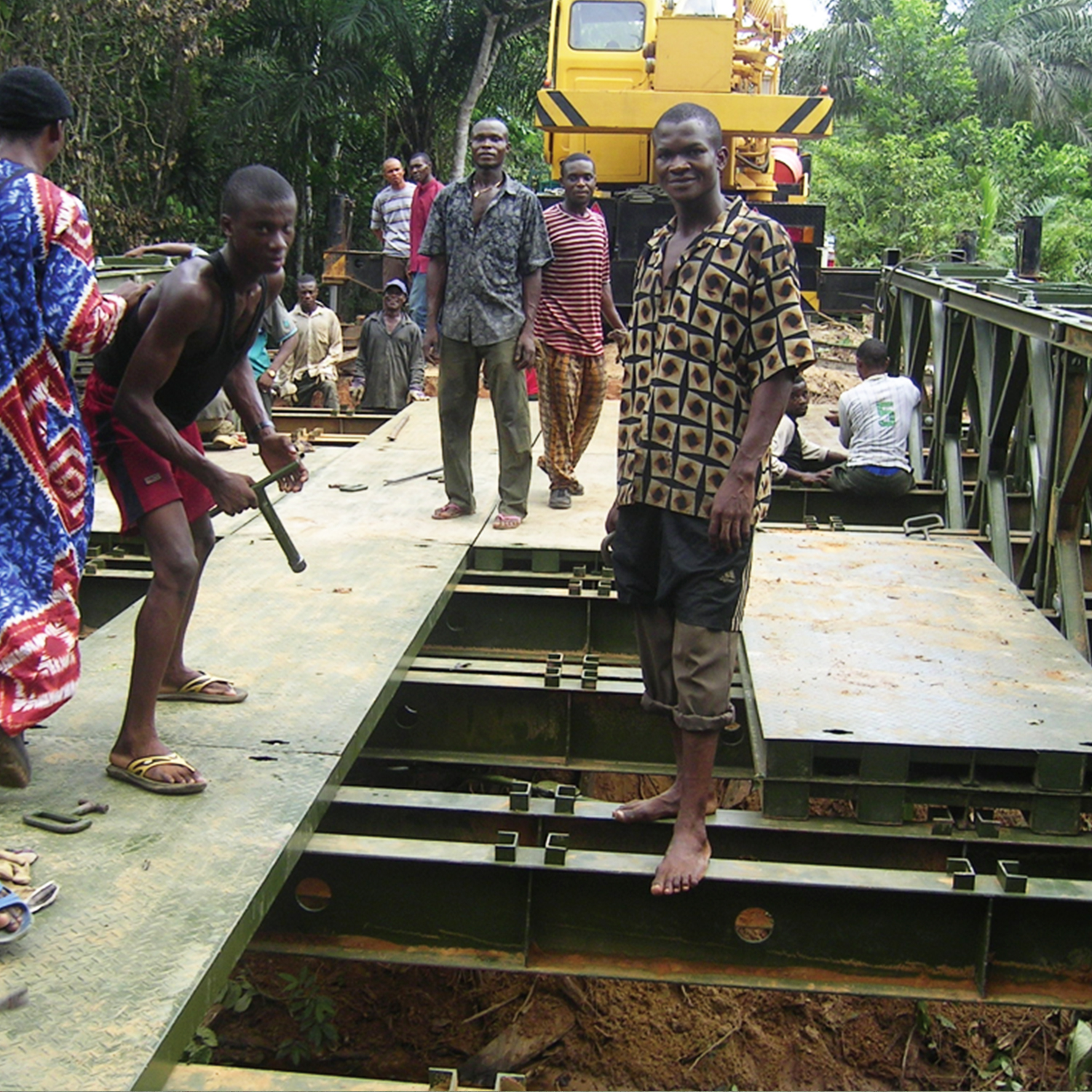

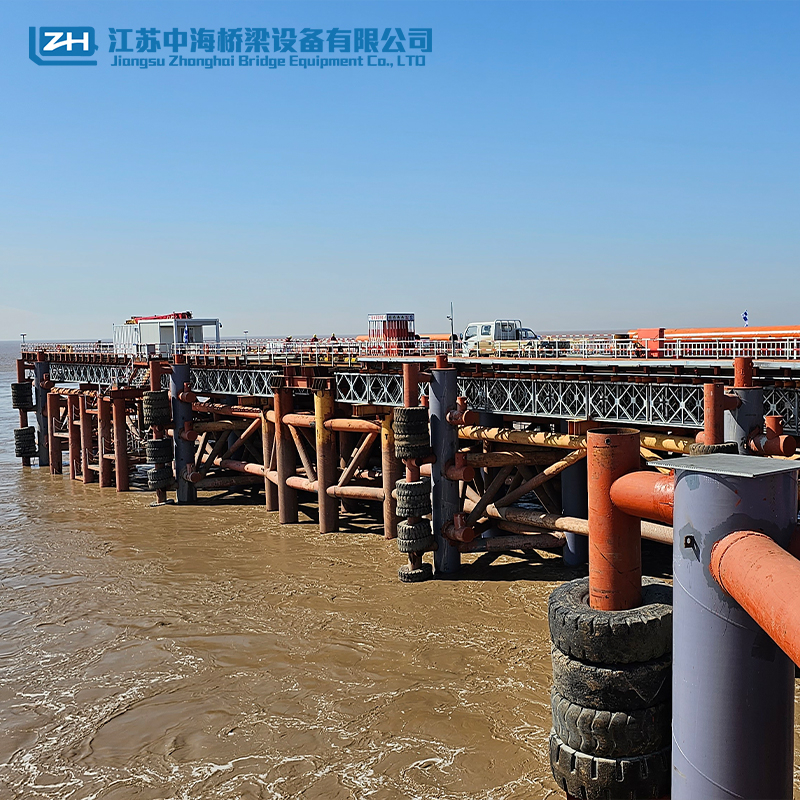

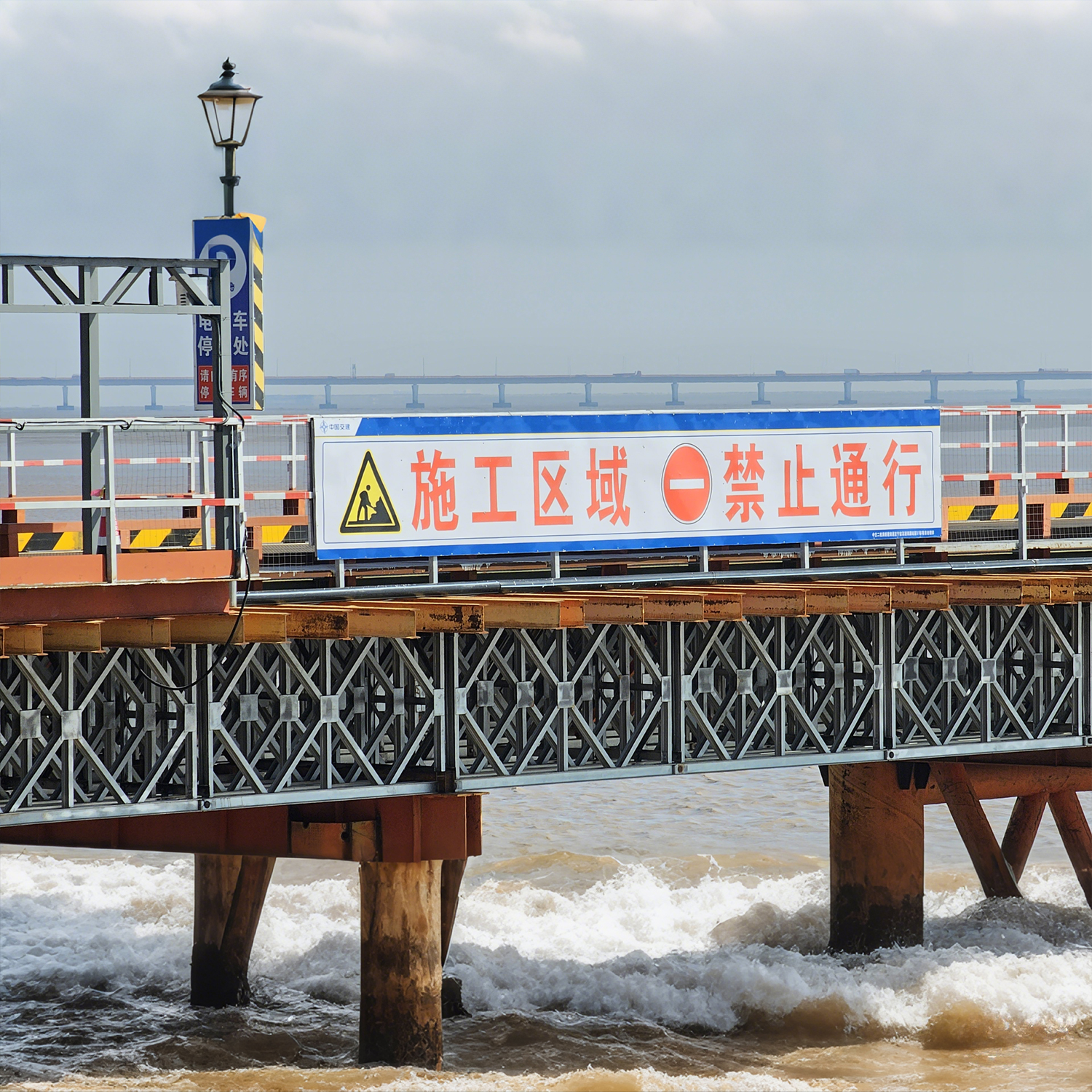

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
