Eco-Friendly Prefabricated Steel Bridges Designed for Long-Lasting Use

In an era where sustainable infrastructure is a global priority, eco-friendly prefabricated steel bridges have emerged as a forward-thinking solution—marrying environmental responsibility with the long-lasting performance needed for modern connectivity. These bridges are engineered to minimize ecological impact at every stage, from production to end-of-life, while delivering the durability to serve communities for decades.

A key eco-friendly feature lies in steel’s inherent sustainability. Steel is one of the most recyclable materials globally, with over 80% of steel used in construction being repurposed from existing sources. Prefabricated steel bridges leverage this: their components are often made from recycled steel, reducing reliance on virgin ore extraction and cutting carbon emissions associated with raw material processing. Additionally, at the end of the bridge’s lifespan (typically 50+ years), nearly all steel components can be recycled again, creating a circular economy loop that minimizes waste—unlike concrete bridges, which often end up in landfills.

The prefabrication process further enhances environmental friendliness. By manufacturing components in controlled factory settings, prefabricated steel bridges reduce on-site construction waste by up to 30% compared to traditional builds. Factories optimize material use, cutting down on excess steel or packaging, and limit on-site pollution (such as noise, dust, and fuel emissions from construction vehicles). For example, a rural bridge project using prefabricated steel avoided over 5 tons of on-site waste and reduced construction-related carbon emissions by 25%—a significant benefit for ecologically sensitive areas like riverbanks or forested regions.

Crucially, these eco-friendly designs do not compromise long-lasting use. The steel used is treated with corrosion-resistant coatings (like zinc or eco-friendly polymer layers) that protect against weathering, ensuring the bridge remains structurally sound for decades with minimal maintenance. This longevity reduces the need for frequent repairs or replacements, which would otherwise consume additional resources and generate more waste. In coastal areas, for instance, an eco-friendly prefabricated steel bridge can withstand saltwater corrosion for 40+ years, outperforming many traditional bridges while staying true to sustainable principles.

In conclusion, eco-friendly prefabricated steel bridges prove that sustainability and durability can coexist. By prioritizing recyclable materials, waste reduction, and long-term performance, they offer a responsible choice for infrastructure projects aiming to build a greener, more resilient future.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

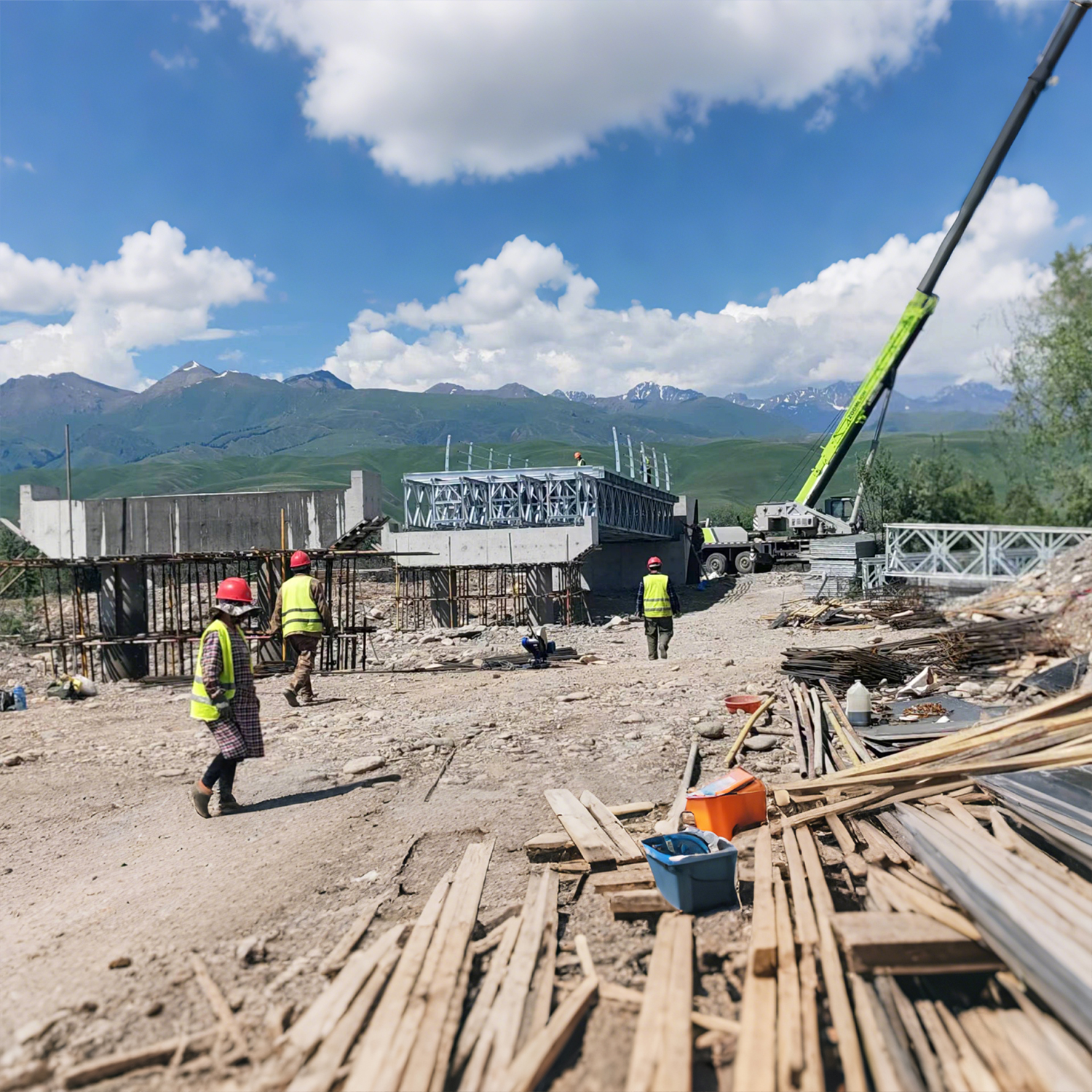

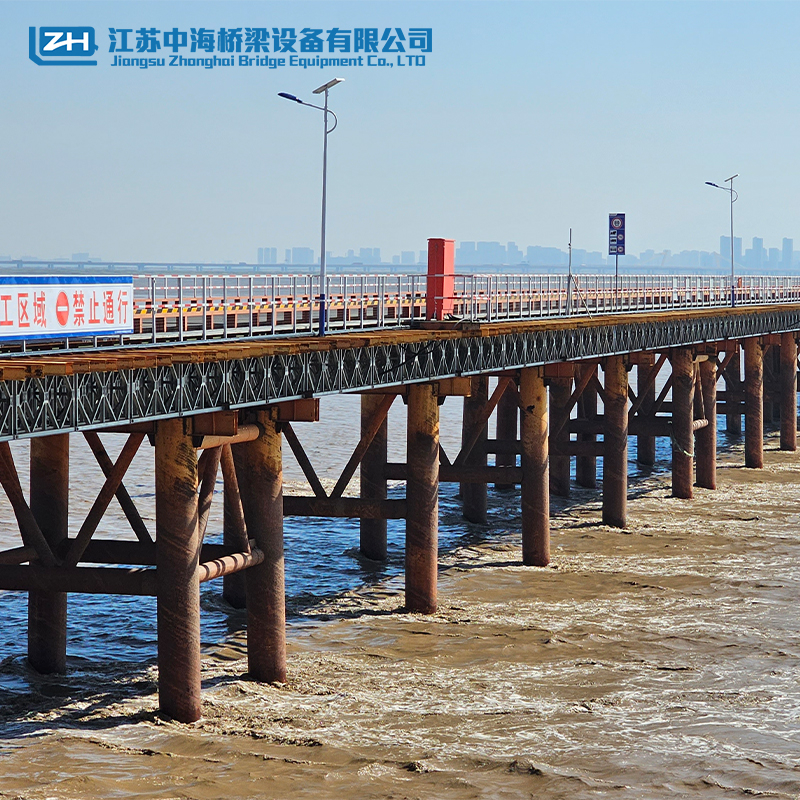

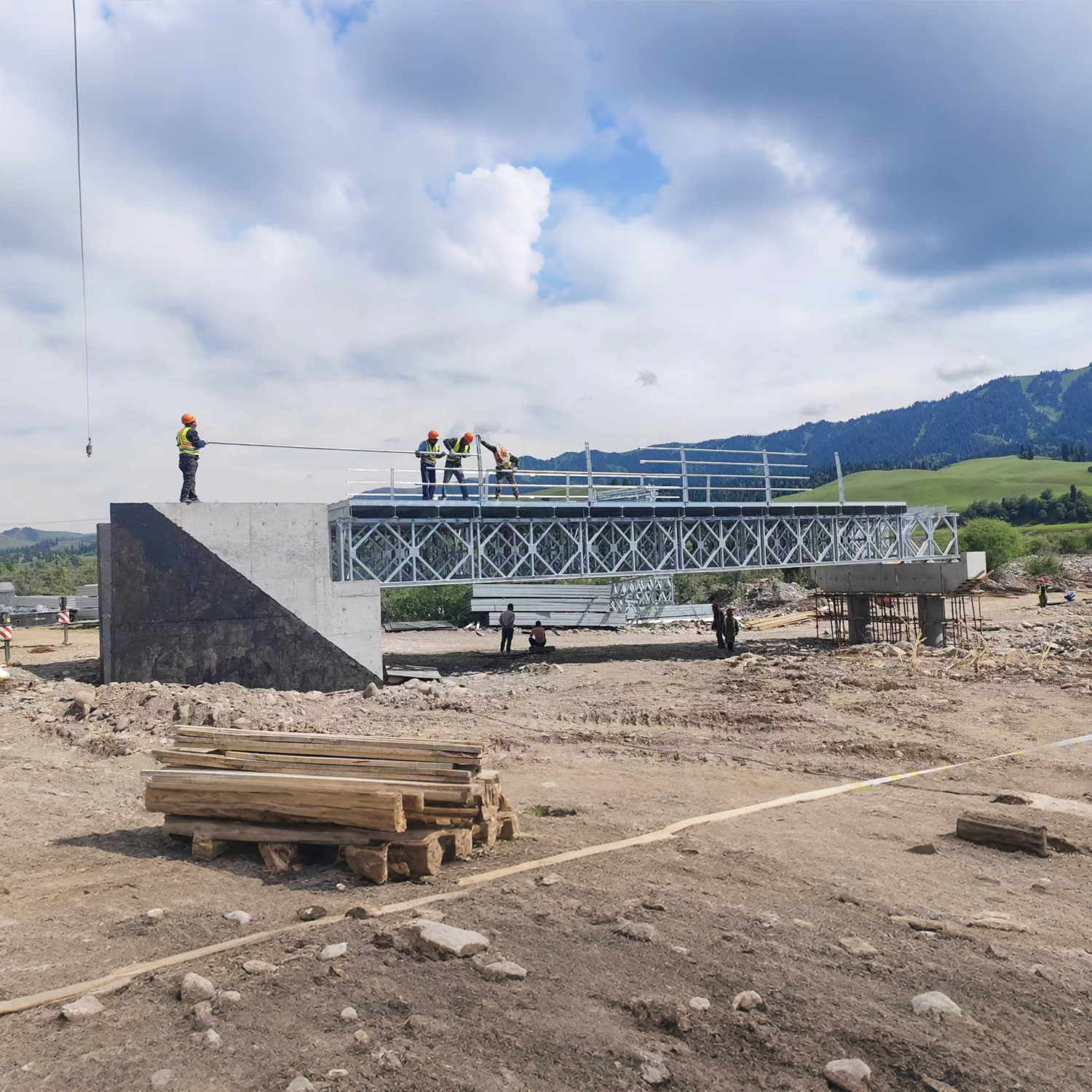

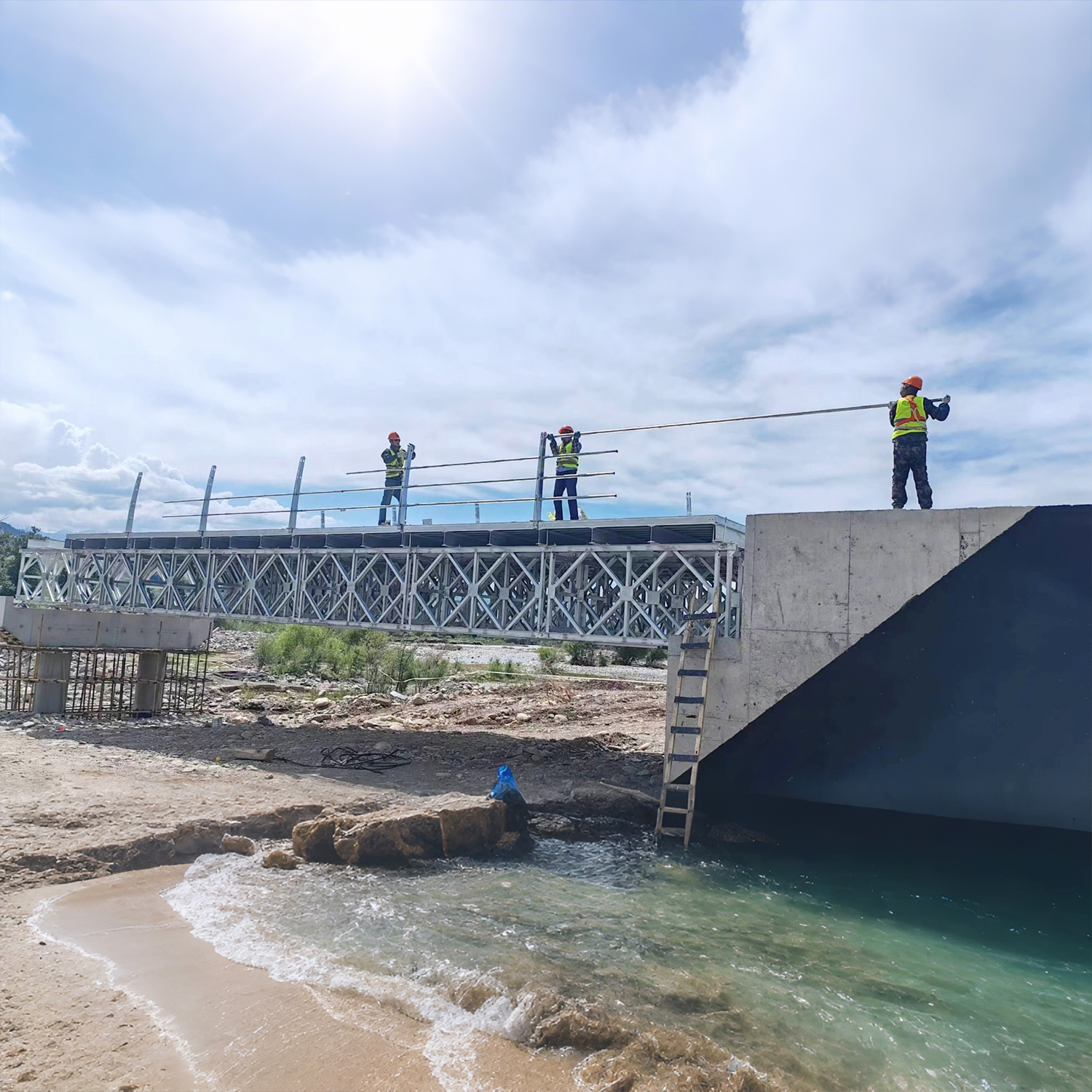

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
