Durable Temporary Steel Solutions for Construction Projects and Events

In the dynamic worlds of construction and event management, the need for reliable, short - term structures is constant—and durable temporary steel solutions have emerged as the go - to answer. These solutions blend robustness with flexibility, meeting the unique demands of construction sites and large - scale events while ensuring safety and efficiency.

For construction projects, temporary steel structures play a pivotal role in supporting daily operations. Steel’s high load - bearing capacity makes it ideal for building temporary access bridges, which connect different parts of a construction site over trenches or uneven terrain, enabling the smooth movement of workers and heavy equipment like excavators and concrete mixers. Additionally, steel - framed temporary warehouses provide secure storage for building materials such as lumber, steel rods, and tools, protecting them from rain, wind, and theft. Unlike flimsy wooden structures that may warp or break under pressure, temporary steel solutions maintain their structural integrity even in harsh construction environments, reducing the risk of delays caused by damaged infrastructure.

When it comes to events—from music festivals and sports tournaments to trade shows—durable temporary steel solutions shine in versatility. Steel truss systems form the backbone of stage setups, supporting heavy lighting, sound equipment, and large screens without compromising safety. Temporary steel grandstands, meanwhile, can be quickly assembled to accommodate thousands of spectators, offering sturdy seating with excellent stability. What sets these steel solutions apart is their durability; they can withstand the wear and tear of high foot traffic, inclement weather, and repeated assembly - disassembly cycles, making them a cost - effective choice for event organizers who host multiple gatherings.

Another key advantage of these temporary steel solutions is their ease of deployment and removal. Most components are prefabricated, allowing for fast on - site assembly and disassembly. This not only saves time—critical for meeting tight construction deadlines or event preparation schedules—but also minimizes disruption to the surrounding area. After use, the steel components can be transported to other sites or stored for future projects, reducing waste and lowering overall costs.

In conclusion, durable temporary steel solutions are indispensable for construction projects and events. Their strength, versatility, and convenience make them a reliable choice, ensuring that short - term structural needs are met with long - lasting performance.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

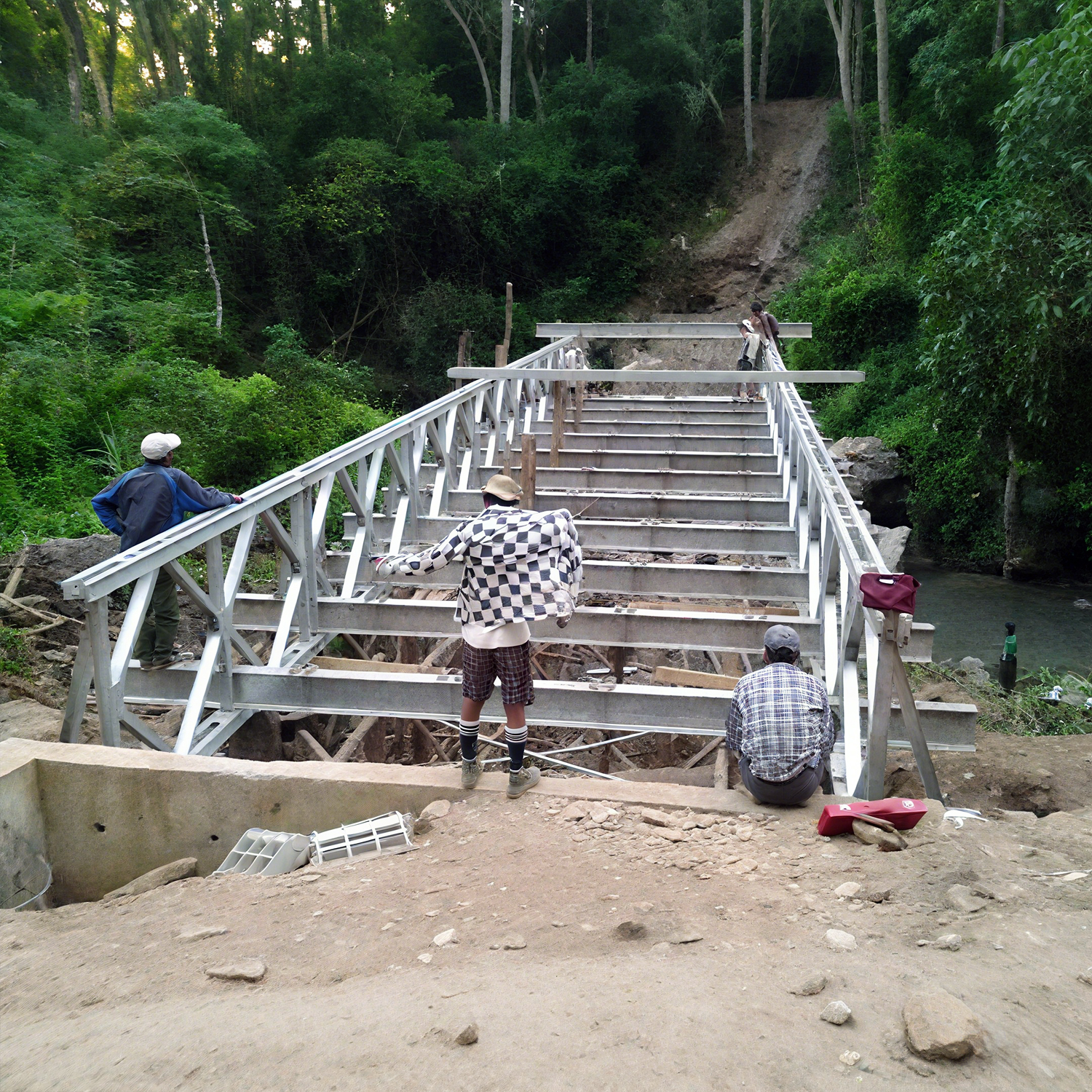

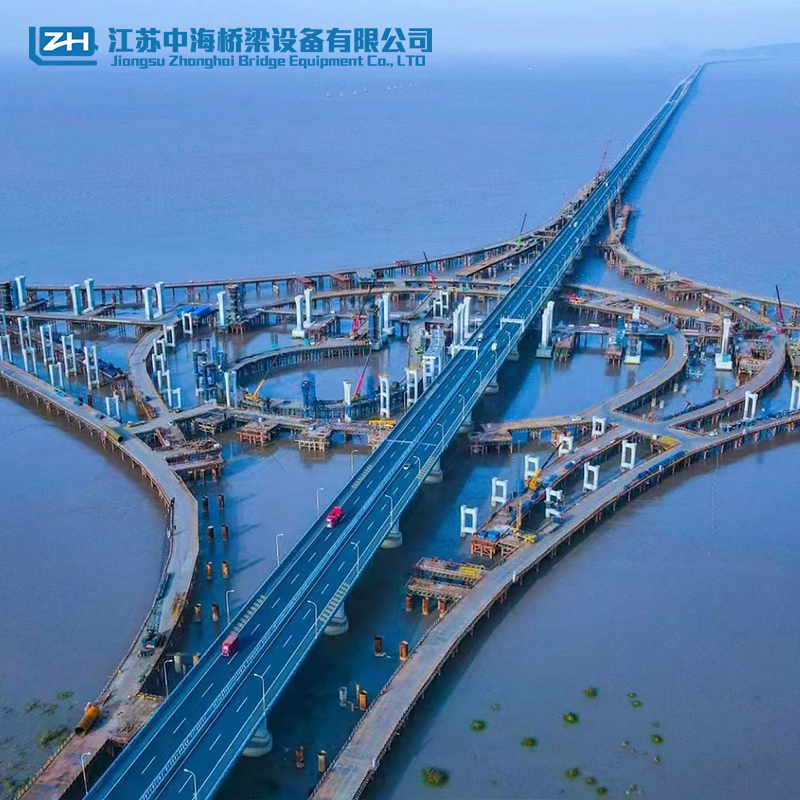

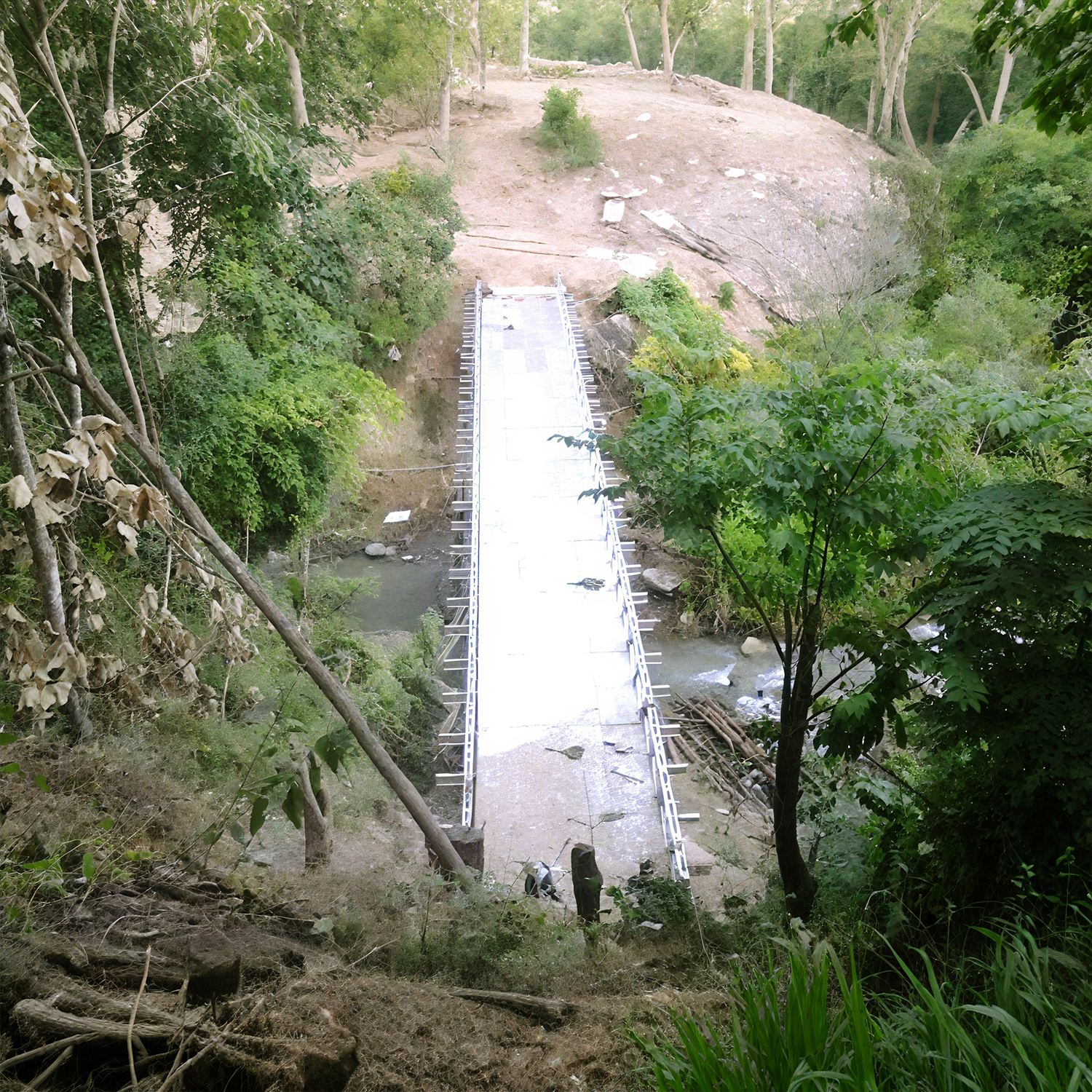

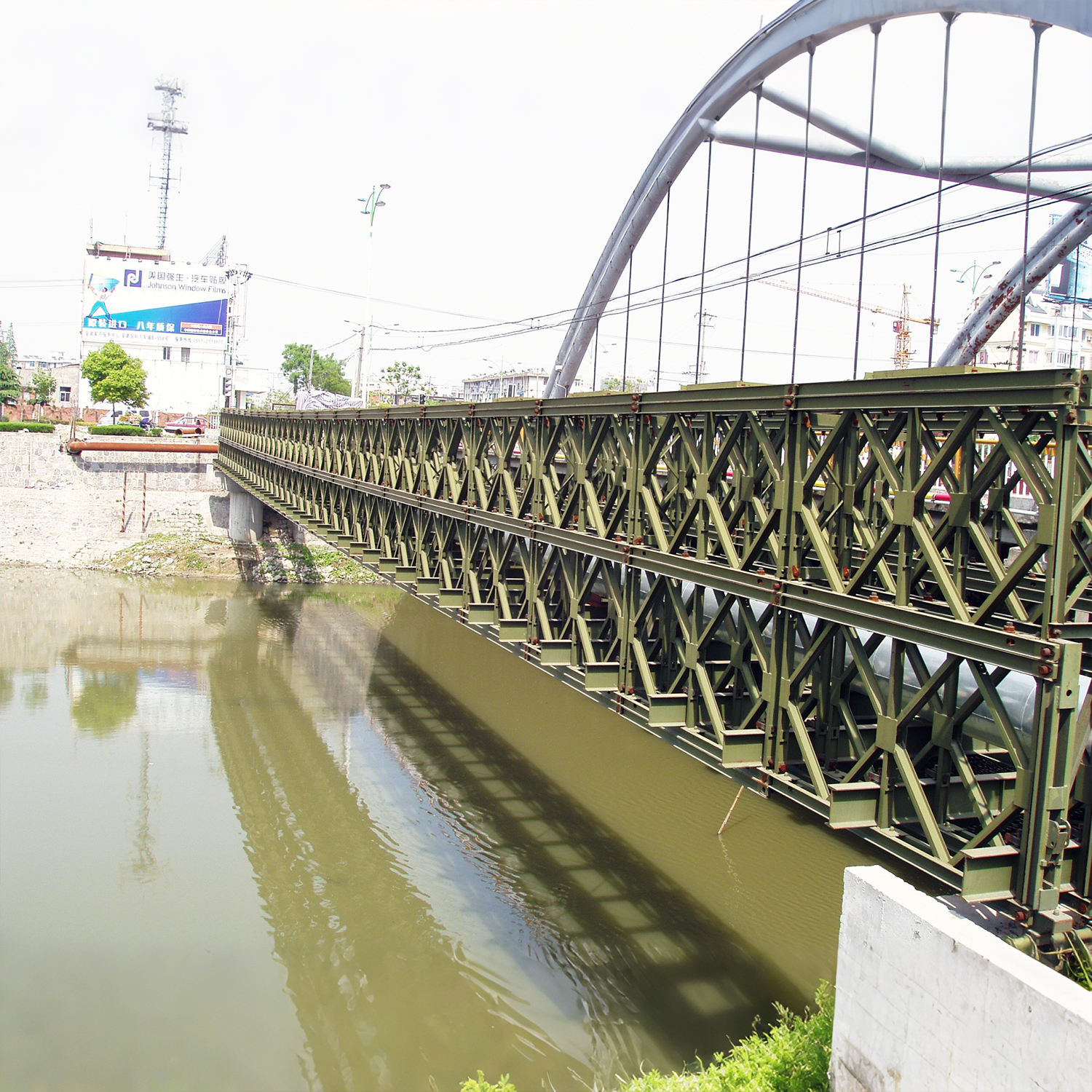

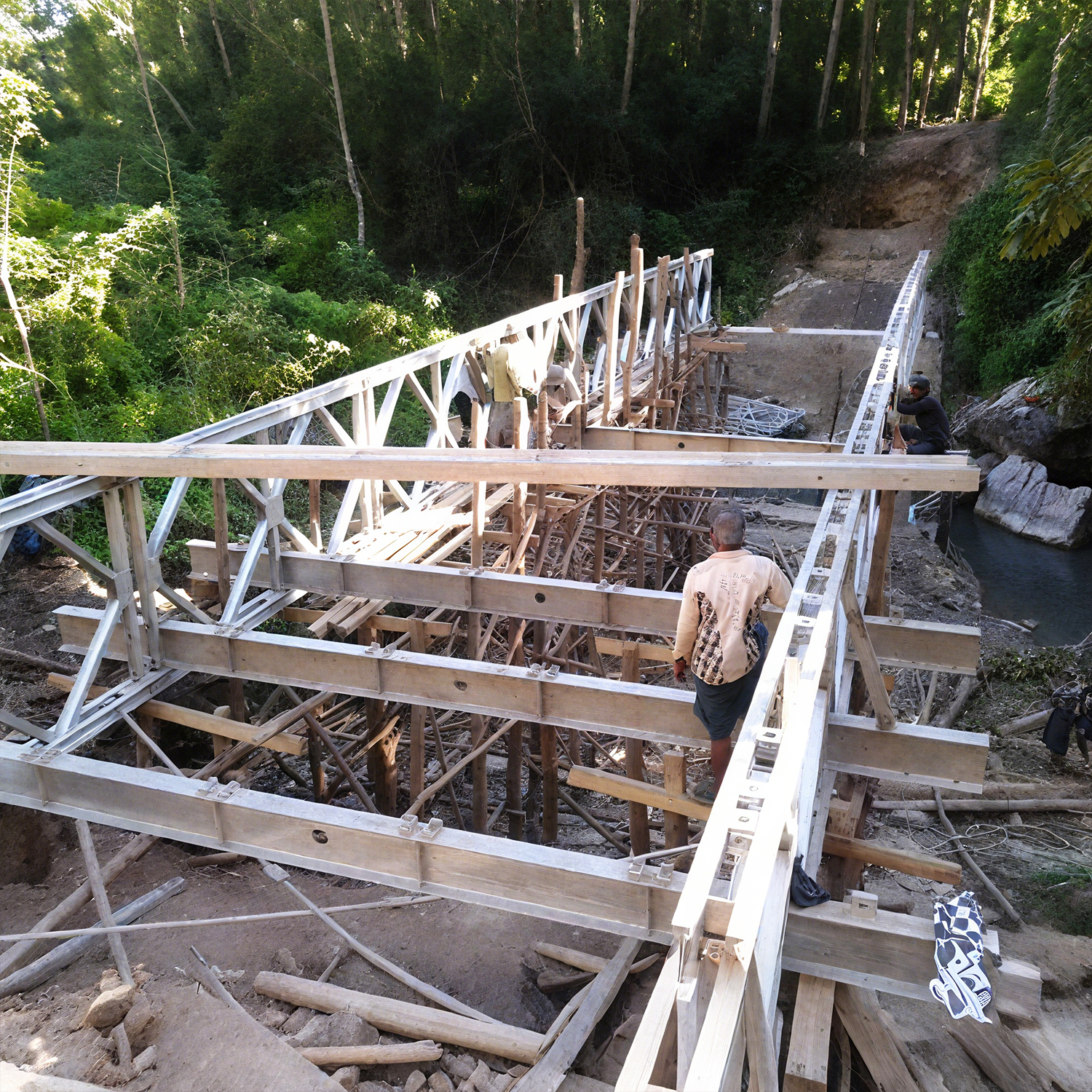

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
