In the pursuit of efficient transportation—whether for connecting remote areas, replacing damaged infrastructure, or supporting temporary traffic surges—durable modular steel bridges have emerged as a transformative solution. These bridges blend the strength of steel with the flexibility of modular design, creating a transportation asset that is both long - lasting and quick to deploy, perfectly addressing modern mobility needs.

Durability is the foundation of these bridges, rooted in their high - quality steel construction. Steel’s inherent resistance to wear, corrosion (especially when galvanized), and heavy loads ensures the bridges can withstand decades of use. Unlike wooden or concrete alternatives that may crack, rot, or degrade under frequent traffic or harsh weather, modular steel bridges maintain structural integrity even when supporting daily passages of trucks, buses, and passenger vehicles. For example, in a coastal region where saltwater spray threatens infrastructure, a galvanized modular steel bridge remains rust - free, avoiding costly repairs and ensuring uninterrupted transportation for local communities and businesses.

The modular design of these bridges is what drives their efficiency in transportation solutions. Each bridge is composed of prefabricated steel components that are manufactured in factories with precision. This means on - site assembly is fast—often completed in days instead of weeks—minimizing disruptions to existing traffic. For instance, if a highway bridge is damaged by a storm, a modular steel bridge can be transported to the site in standard trucks and assembled quickly, restoring traffic flow and reducing economic losses from delays. Additionally, the modular structure allows for easy expansion or reconfiguration: a single - lane bridge can be extended to two lanes as a region’s population and traffic grow, adapting to changing transportation demands without rebuilding from scratch.

Moreover, these bridges excel in diverse transportation scenarios. They are ideal for rural areas needing to connect villages to main roads, construction sites requiring temporary access for machinery, and urban areas facing short - term traffic bottlenecks. Their ability to be disassembled and reused at other sites further enhances their efficiency, reducing waste and lowering long - term infrastructure costs.

In conclusion, durable modular steel bridges offer an unrivaled mix of durability, speed, and adaptability. As a core component of efficient transportation solutions, they ensure reliable, long - lasting connectivity that meets the evolving needs of communities and industries worldwide.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

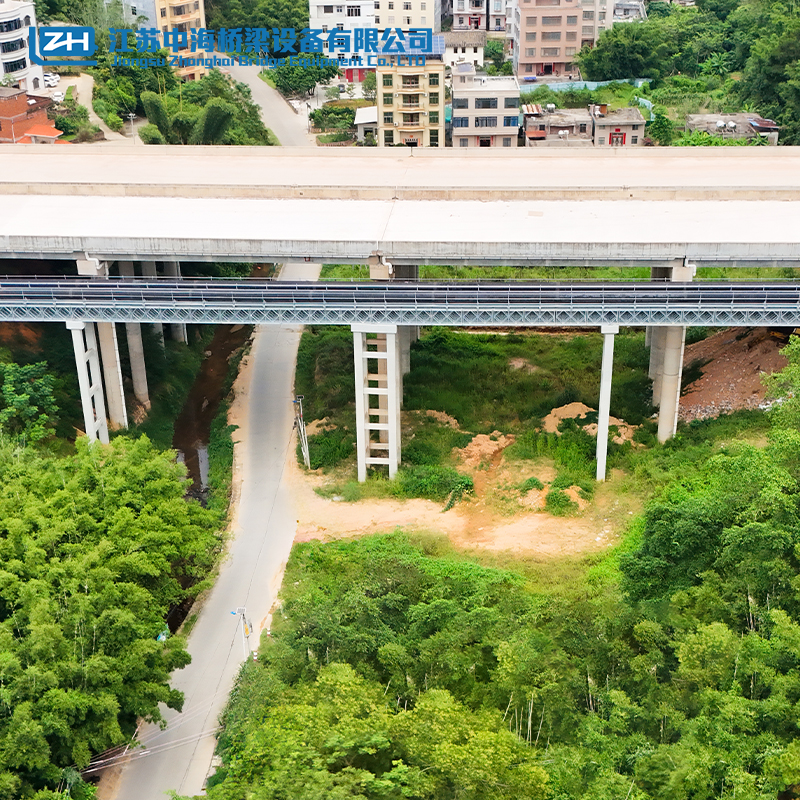

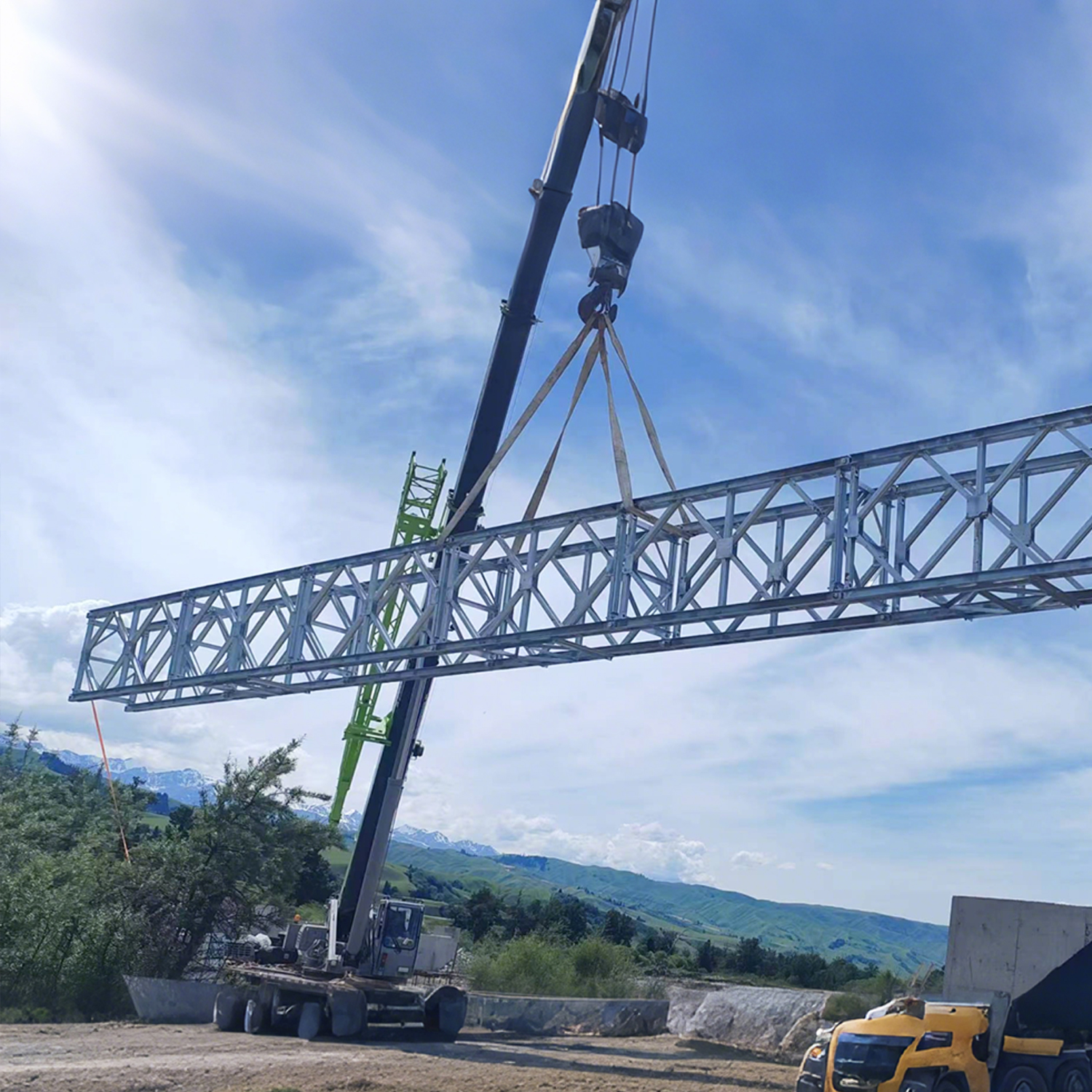

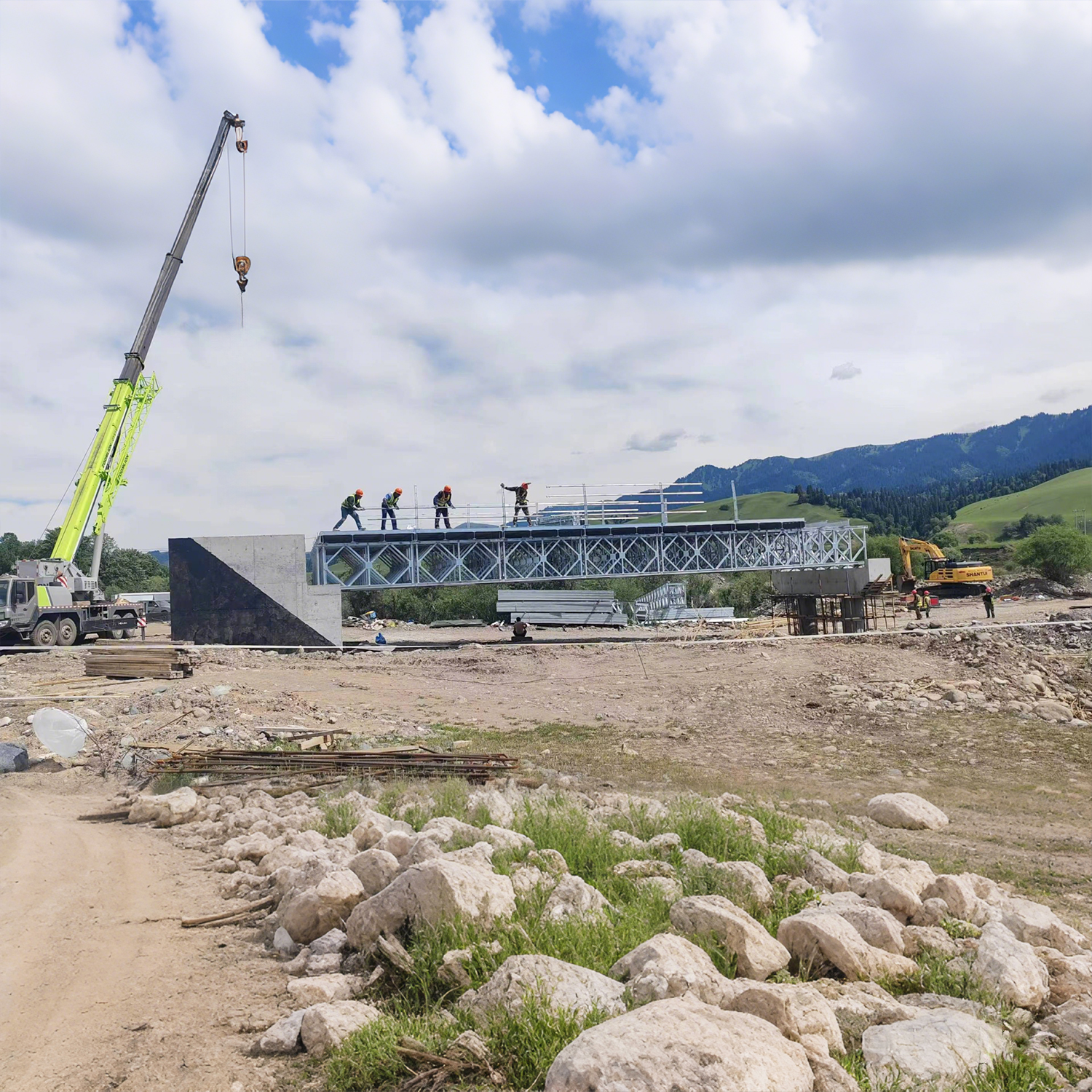

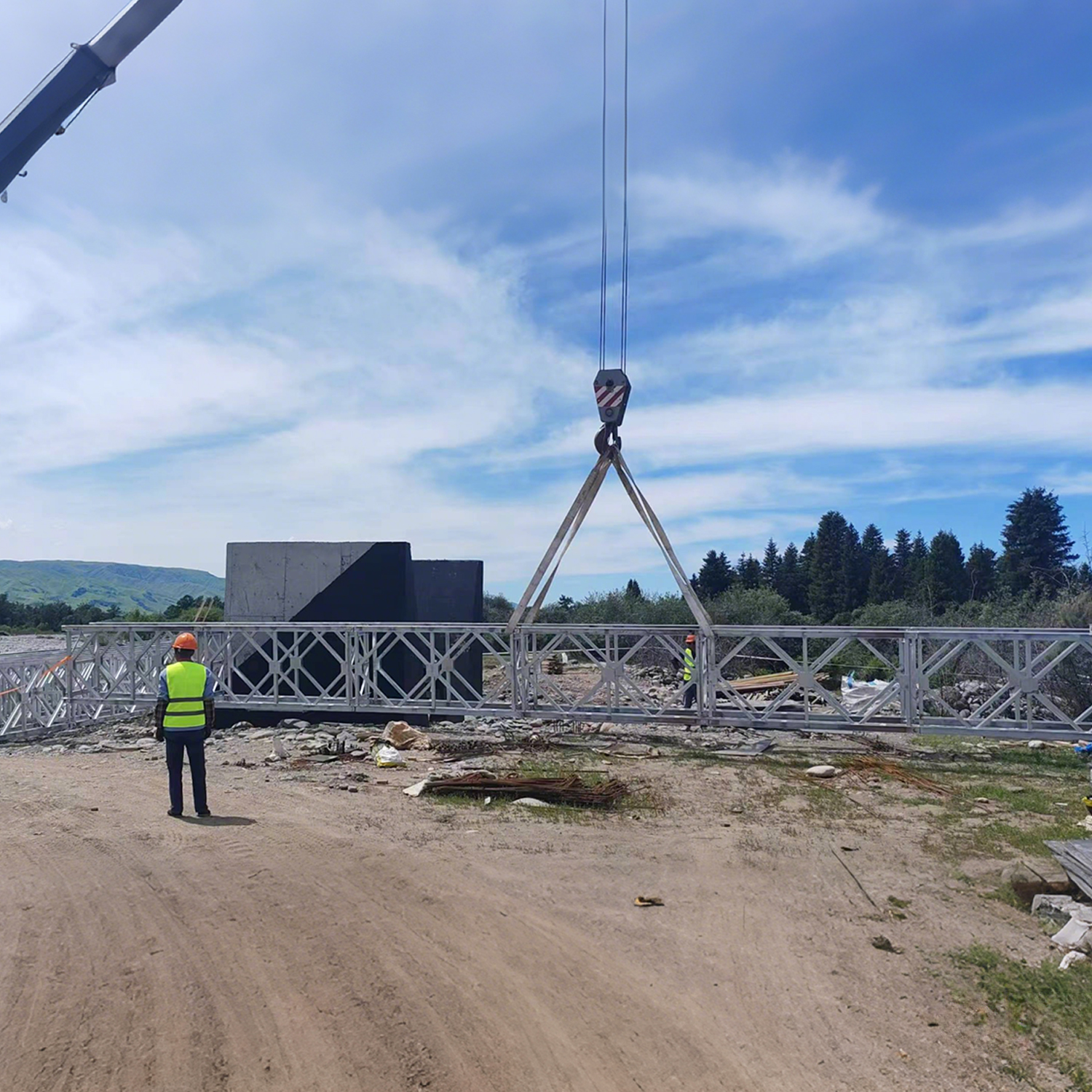

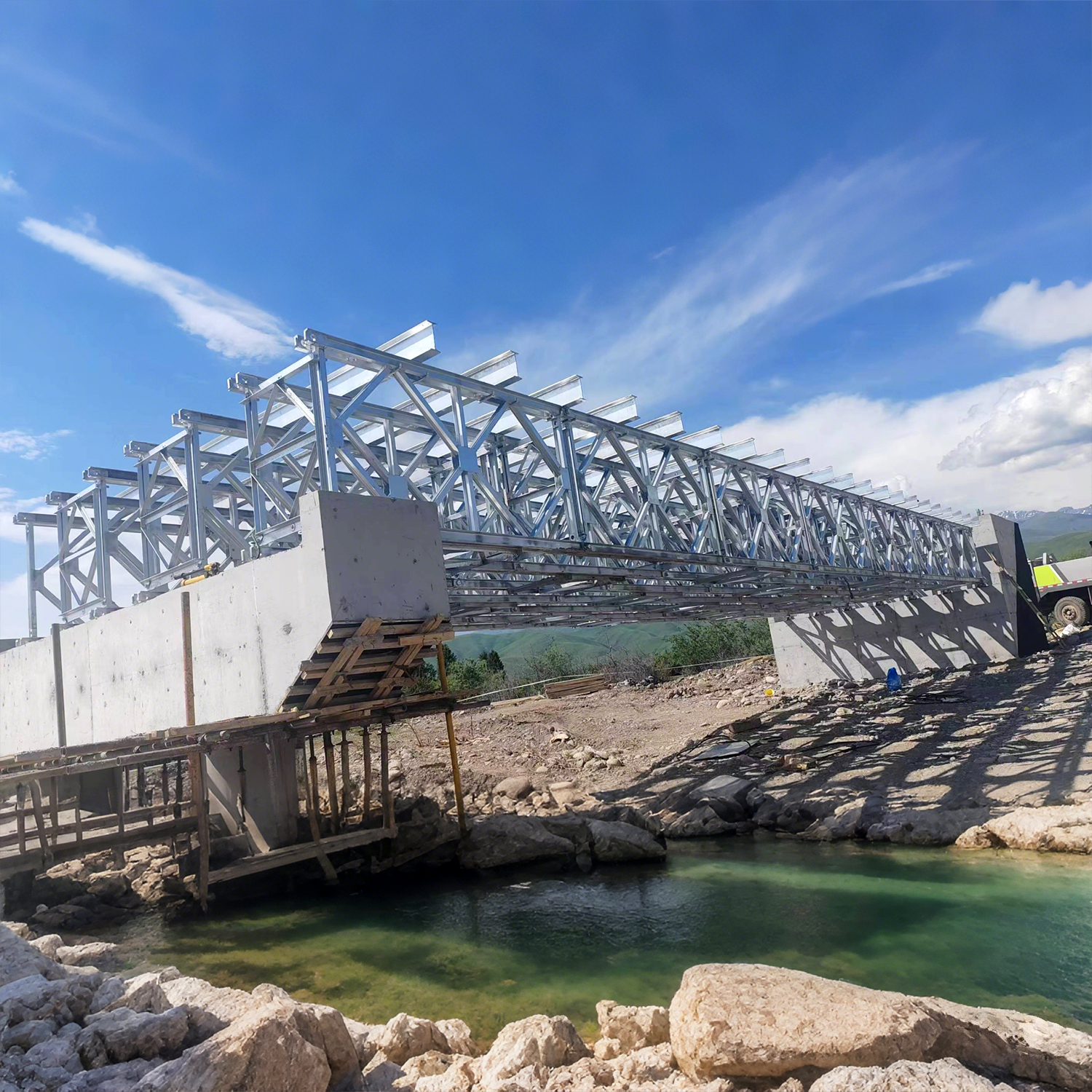

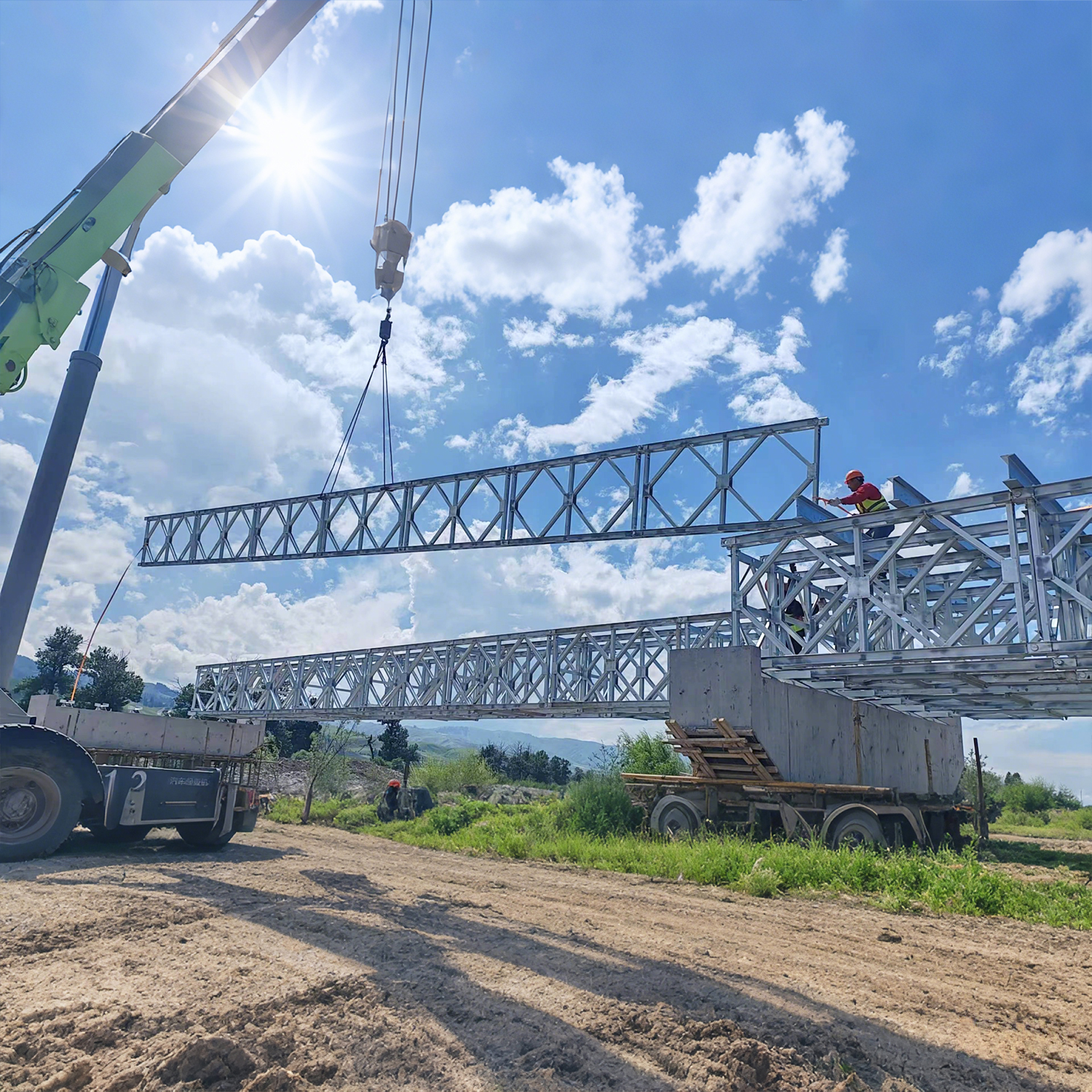

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
