The Versatility and Value of Customized Bridges

Customized bridges represent a tailored approach to infrastructure, designed to address the unique chall

enges of specific sites, functions, and environments. Unlike one-size-fits-all standardized bridges, these structures are engineered from the ground up, ensuring they align perfectly with project requirements—whether for urban landscapes, remote rural areas, or specialized industrial needs.

A key strength of customized bridges lies in their adaptability to diverse conditions. Engineers consider factors like terrain (hills, rivers, or dense urban spaces), load demands (pedestrians, heavy trucks, or trains), and environmental risks (earthquakes, floods, or coastal corrosion) during the design phase. For instance, a customized bridge in a coastal city might use corrosion-resistant materials like stainless steel or fiber-reinforced polymers, while one in a seismic zone could incorporate flexible joints to absorb shock, ensuring safety and longevity.

Beyond functionality, customized bridges often prioritize aesthetics and integration with surroundings. In urban areas, they may feature sleek designs, lighting elements, or pedestrian-friendly walkways to enhance the cityscape and improve user experience. In natural settings, such as national parks, bridges might use wood or weathered steel to blend with the landscape, minimizing environmental impact while providing essential connectivity.

Customization also extends to construction methods, making these bridges suitable for complex sites. For example, in areas with limited access—like mountainous regions or busy city centers—engineers might design prefabricated components that can be assembled on-site quickly, reducing disruption to local communities and ecosystems.

In summary, customized bridges offer a balance of functionality, durability, and aesthetic appeal. By catering to specific project needs, they provide long-term value, ensuring infrastructure that not only meets current demands but also adapts to future changes. As communities and industries grow more diverse, the role of customized bridges in building resilient, efficient transportation networks becomes increasingly vital.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

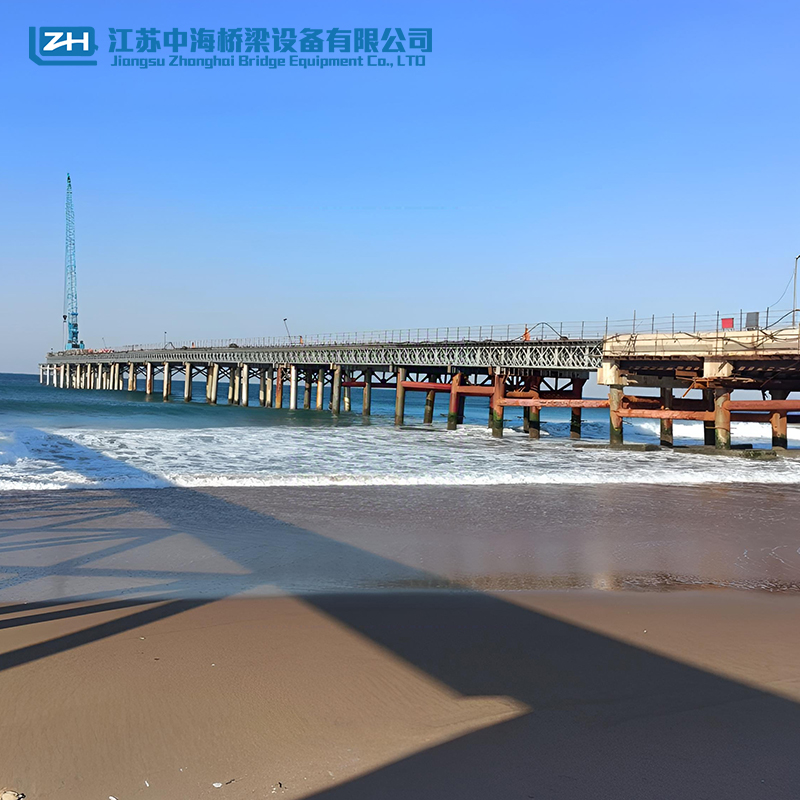

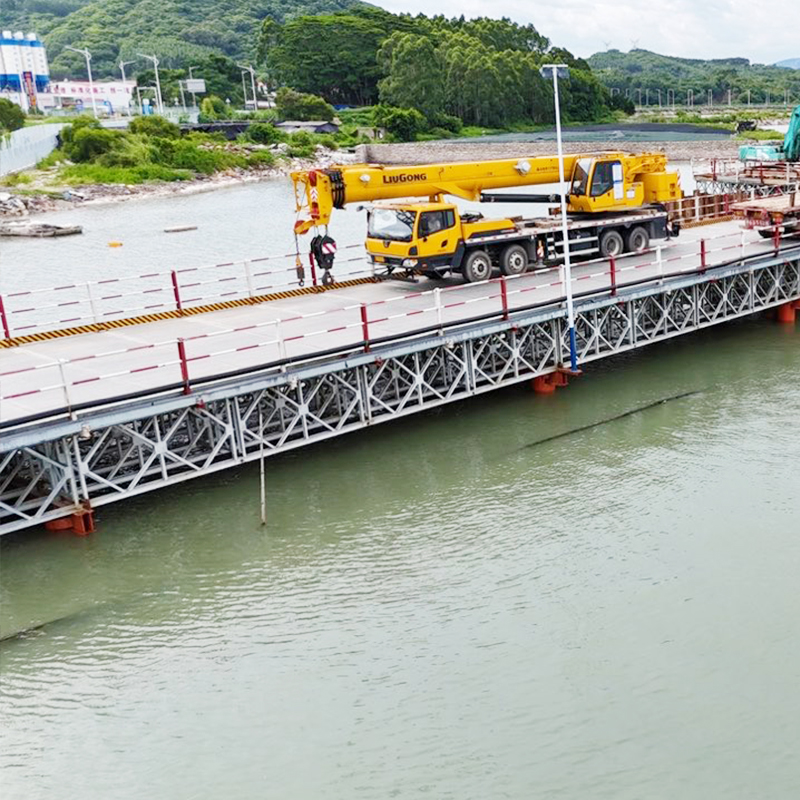

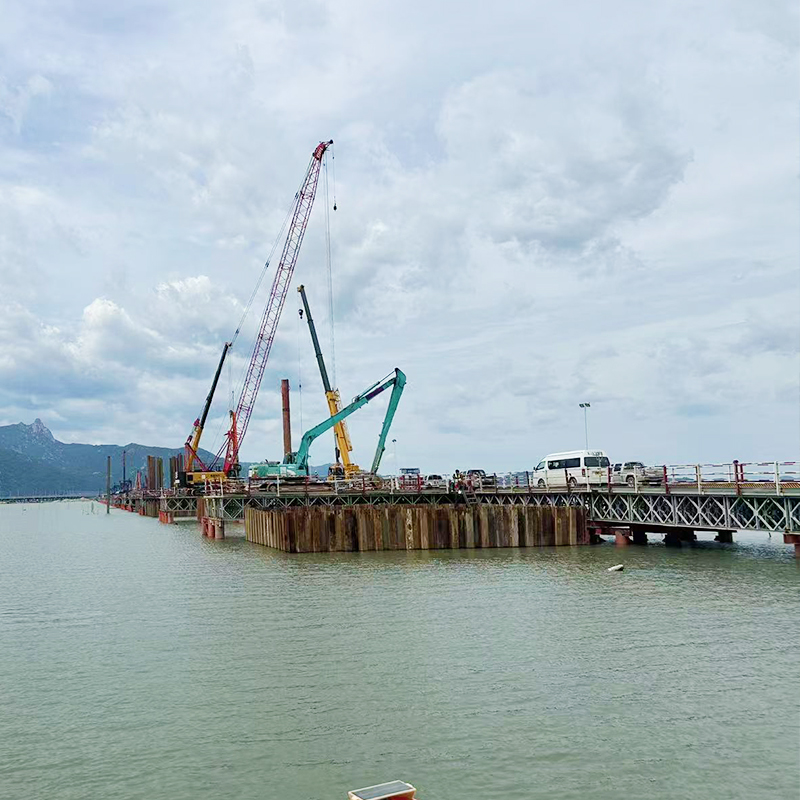

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
