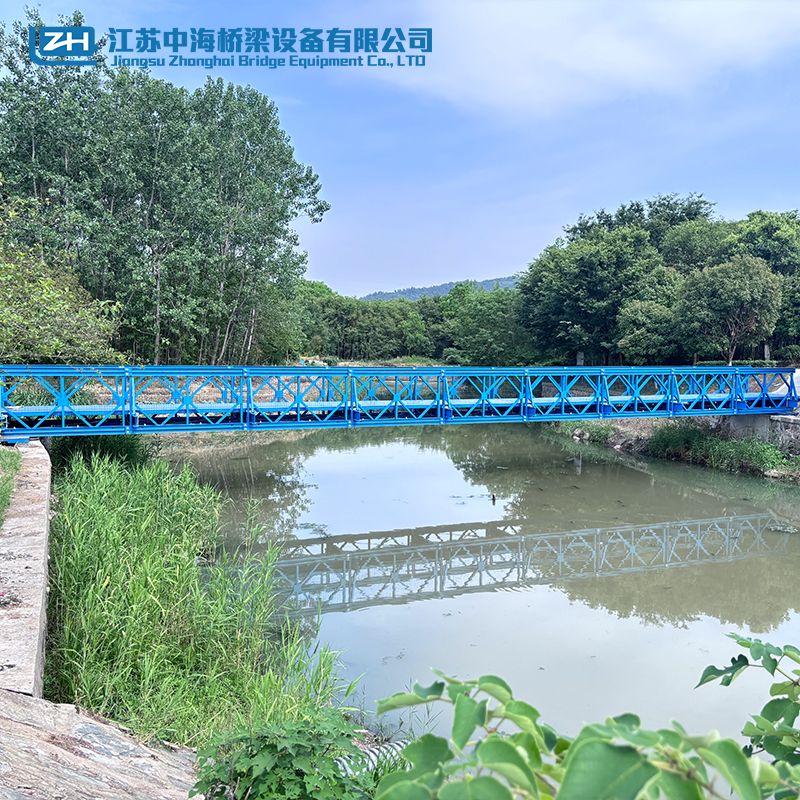

Introducing the Modern Single-Row Single-Layer Reinforced Portable High-Quality Bailey Bridge. This product is designed for easy installation and deployment, making it ideal for a variety of applications.
The Modern Single-Row Single-Layer Reinforced Portable High-Quality Bailey Bridge features a simple and straightforward installation process, allowing for quick setup in any location. Additionally, all components of the bridge are easily transportable by hand, making it convenient to move and assemble as needed.
Constructed with high-quality materials, this Bailey bridge is built to last and withstand the elements. Its reinforced design ensures durability and stability, providing a reliable solution for temporary or permanent bridge needs.
Whether used for military operations, emergency response efforts, or infrastructure projects, the Modern Single-Row Single-Layer Reinforced Portable High-Quality Bailey Bridge offers a versatile and dependable solution. Invest in this top-of-the-line product for your bridge construction needs.
Basic Info.
Life
Semi-Permanent Bridge
Across Way
Diffuse Water Bridge
Lane Position
Half Through Bridge
Usage
Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge
Stress Characteristics
Beam Bridge
Product Capability
60000 Pieces Per Year
Packing
Packing in Containers or Bulk
Dimensions
Standard or Customized
Qualification
ISO or Similar
Production Capacity
50000 Pieces/Year
Packaging & Delivery
Package Size
305.00cm * 160.00cm * 180.00cm
Package Gross Weight
2650.000kg
Product Description
Requested Emergency Truss Bridge Standard | CB321(100) Truss Press Limited Table |
| No. | Lnternal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Standard Truss Moment(kN.m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 1687.5 | 3375 | 4809.4 | 6750 |
| 321(100) | Standard Truss Shear (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 245.2 | 490.5 | 698.9 | 490.5 |
| 321 (100) Table of geometric characteristics of truss bridge(Half bridge) |
| Type No. | Geometric Characteristics | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Section properties(cm3) | 3578.5 | 7157.1 | 10735.6 | 14817.9 | 7699.1 | 15398.3 | 23097.4 | 30641.7 |
| 321(100) | Moment of inertia(cm4) | 250497.2 | 500994.4 | 751491.6 | 2148588.8 | 577434.4 | 1154868.8 | 1732303.2 | 4596255.2 |
Company instruction Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade: Q355B/Q460C or Equivalent

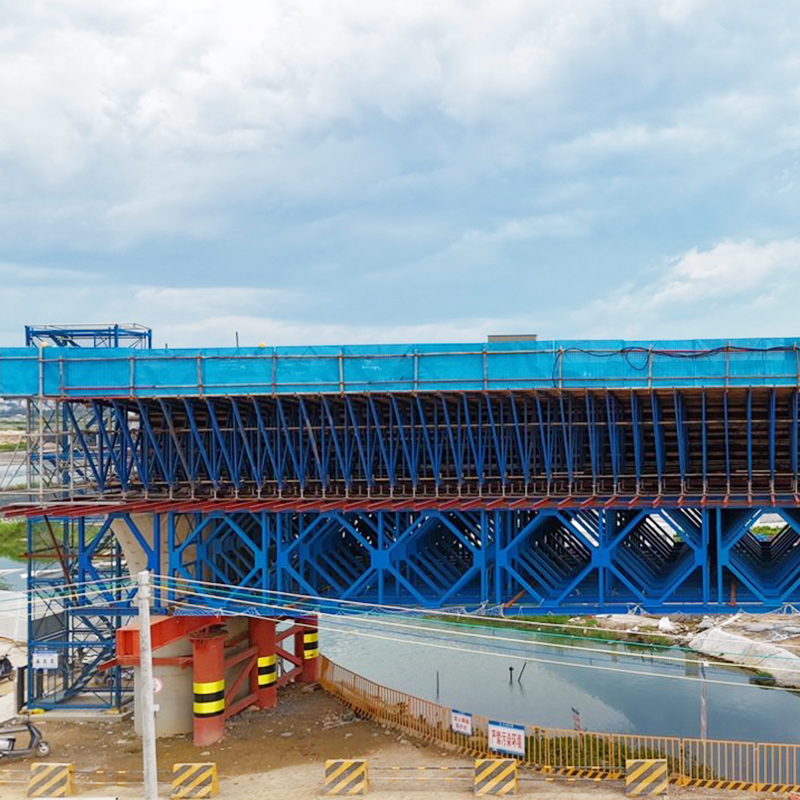

Application: temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size
Certificates Factory show Packing and Transporting
FAQ
01.Which countries do you export to? Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc. 02.Are you a factory or a trade company ?
We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience. 03.Do you accept custom processing?
Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure. 04.Can your company meet American standards? Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards. 05.Which airport is the nearest to your company?
Can l visit your company anytime?
The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company. 06.Could you send me some hard copies of your catalogues? Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible. 07.Can we be your agent or distributor?
Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you! 08.How soon can l receive your reply after l send you my inquiry? We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
