The Design Excellence and Functional Advantages of Customized Steel Truss Arch Bridges

Customized steel truss arch bridges stand as a pinnacle of tailored infrastructure, blending the structural efficiency of truss-arch systems with personalized design to meet unique engineering, environmental, and aesthetic needs. Unlike standardized bridge models, these bridges are engineered from scratch, leveraging steel’s high strength and truss-arch geometry to balance load-bearing capacity, span length, and site-specific constraints.

A defining feature of these bridges is their design flexibility. Engineers customize every element—from truss member size and arch curvature to connection details—based on factors like target load (pedestrian, vehicle, or heavy freight), span requirements (ranging from short urban crossings to long-span river crossings), and environmental conditions (such as seismic activity or coastal corrosion). For example, in earthquake-prone regions, truss joints can be reinforced with flexible connectors to absorb seismic energy, while coastal projects may use corrosion-resistant stainless steel or galvanized components to withstand saltwater exposure.

Beyond structural adaptability, customized steel truss arch bridges excel in both performance and aesthetics. The truss design distributes weight evenly across the arch, reducing stress on individual components and enabling longer spans without excessive material use—making them cost-effective for large-scale projects. Aesthetically, the open truss framework can be tailored to complement surrounding landscapes: urban bridges may feature sleek, minimalist trusses, while rural or scenic areas might incorporate decorative elements that blend with nature.

Practical applications of these bridges are widespread. They are commonly used for highway overpasses, railway crossings, pedestrian walkways in urban parks, and even industrial access bridges for ports or mines. Notably, their customization allows them to navigate complex sites—such as narrow river gorges or densely built city centers—where standardized bridges would be impractical.

In summary, customized steel truss arch bridges combine structural resilience, design versatility, and functional specificity. As infrastructure demands grow more diverse, they remain a top choice for projects requiring bridges that are both high-performing and uniquely suited to their environment.

Product Description

steel truss arch bridge/temporary steel bridge

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

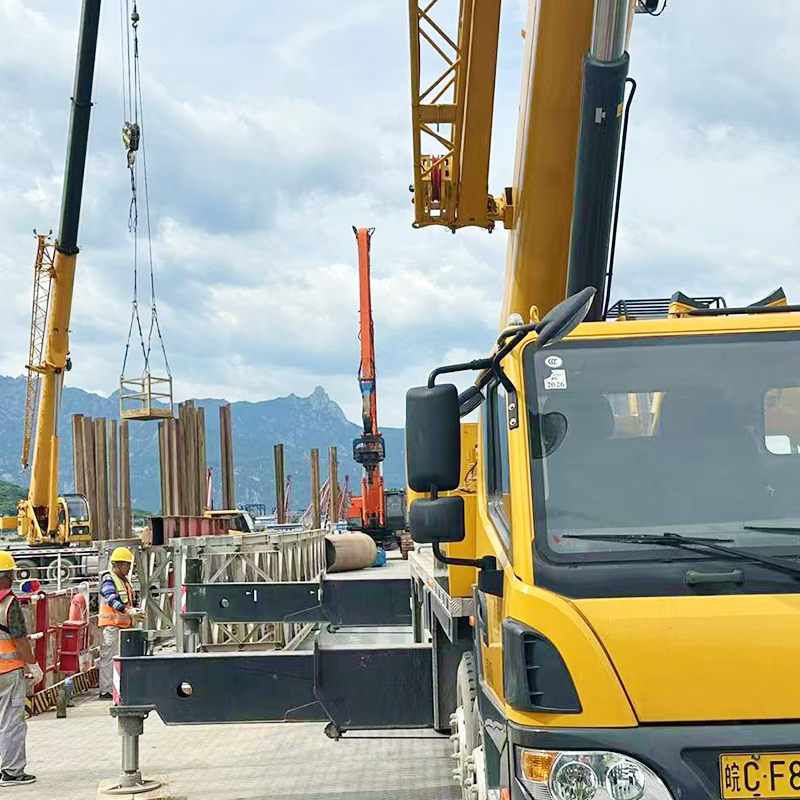

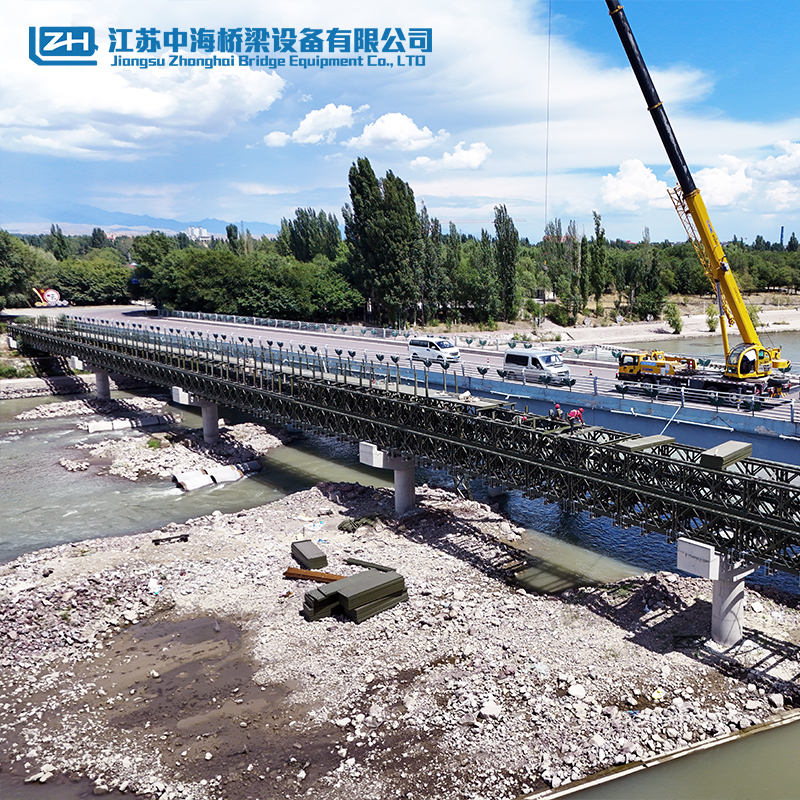

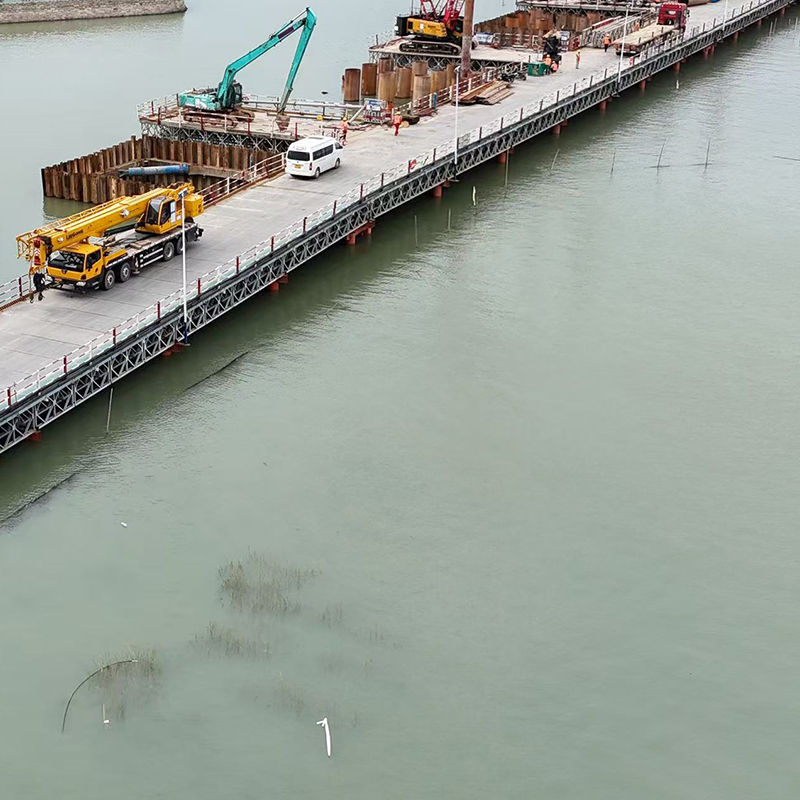

Project cases



Company  instruction

Jiangsu Zhonghai Bridge Equipment Co., Ltd.(code 652268)
Brief instruction:
Location: No. 83, Dantu New City Section, Speech Highway, Dantu District, Zhenjiang, Jiangsu, China
registered capital:55 million yuan
production capacity:60000 tons/year
Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Dimensions: standard / customized
Length : from 9.144m to 60.96m ( / customized )
Material: Steel
Steel Grade:  Q355B/Q460C or Equivalent
Application:  temporary bridge, platform, gantry frame, headframe ,the construction of the tower, float bridge and so on
Transport Package: Packing in Containers or Bulk
Advantage:Proven Robotic Welding,good welding quality and precise size


Workshop



Welding Machine



Certificates




Warehousing and shipping




Packing and Transporting



FAQ

01.Which countries do you export to?
     Our company's products have been exported to dozens of countries and regions. Including:, Malaysia, PhilippinesNepal,Canada, Russia, Mozambique, Cambodia, Laos, Vietnam, Myanmar., Papua New Guinea, Solomon lslands,Kenya, Tanzania,Zambia, Congo,Tajikistan, Georgia, etc.


02.Are you a factory or a trade company ?
      We are an industry and trade company.With a strong background of a registered capital of up to 55 million yuan,the company has a production capacity of over 60000 tons per year. In the East China region, we have successfullypositioned ourselves as a professional manufacturing giant for large Bailey pieces and prefabricated highwaysteel bridges.The company has its own import and export rights, with 20 years of export business experience.


03.Do you accept custom processing?
      Yes, our company has an efficient and flexible technical team, we can process custom-made a variety ofnon-standard Bailey bridge, steel bridge, steel structure.


04.Can your company meet American standards?
         Yes, our products not only meet the AASHT0 American standard, but also meet the British BS5400, AustraliaAS5100 and other international standards.


05.Which airport is the nearest to your company?
Can l visit your company anytime?
      The nearest airport is Shanghai Pudong lnternational Airport. You can visit our company anytime, our companywill issue an invitation letter and arrange to pick you up according to your needs. Your transportation andaccommodation during your visit to our company will be arranged by our company.


06.Could you send me some hard copies of your catalogues?
        Sure. Please send us your address and contact information and we will send it to you by international express assoon as possible.


07.Can we be your agent or distributor?
      Our company is recruiting powerful partners all over the world for common development and win-win . Lookforward to long-term cooperation with you!



08.How soon can l receive your reply after l send you my inquiry?
       We will give professional and technical feedback within 6 hours after receiving your inquiry . After communicatethe technical parameters,we will provide quotation and preliminary design within 24 hours.
